Hospital Clinic Health Care Center Portable 6 Channel ECG Machine ME06 | DAWEI

Hospital Clinic Health Care Center Portable 6 Channel ECG Machine ME06 | DAWEI

$769.00 USD
$769.00 USD
Sale Sold out
Taxes included
Model

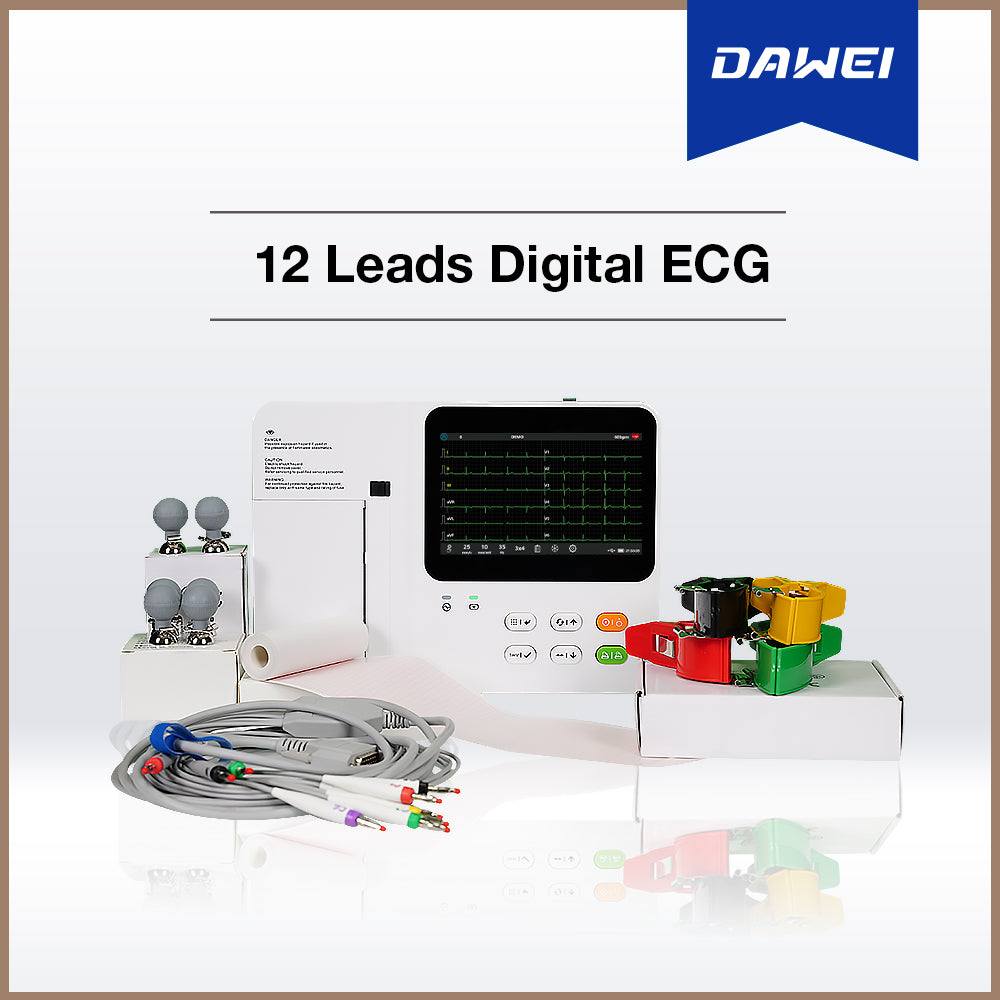

WHAT'S IN THE BOX？

ECG Machine ME06 - Group A -button type ECG cable

  • Main unit *1
  • 12-Lead ECG cable(button type)  *1
  • Disposable electrode pads *10 pcs
  • Printing paper *1 roll
  • Power cable *1

ECG Machine ME06 - Group B -plug-in type ECG cable

  • Main unit *1
  • 12-Lead ECG cable(plug-in type)  *1
  • Suction ball (adult) *6 pcs
  • Limb clip (adult) *4 pcs
  • Printing paper *1 roll
  • Power cable *1

ECG Machine ME06 - Group C -clamp type ECG cable

  • Main unit *1
  • 12-Lead ECG cable(clamp type)  *1
  • Disposable electrode pads *10 pcs
  • Printing paper *1 roll
  • Power cable *1

DELIVERY & RETURN

  • US orders include taxes & shipping, processed and delivered within 10-15 business days.
  • Worldwide free shipping on orders over US$59.
  • 30-day returns accepted from delivery date.
View full details

Product name: Brand New Portable 7-inch Touch Screen 6 Channel ECG Machine With Printer ME06

Product Benefits:

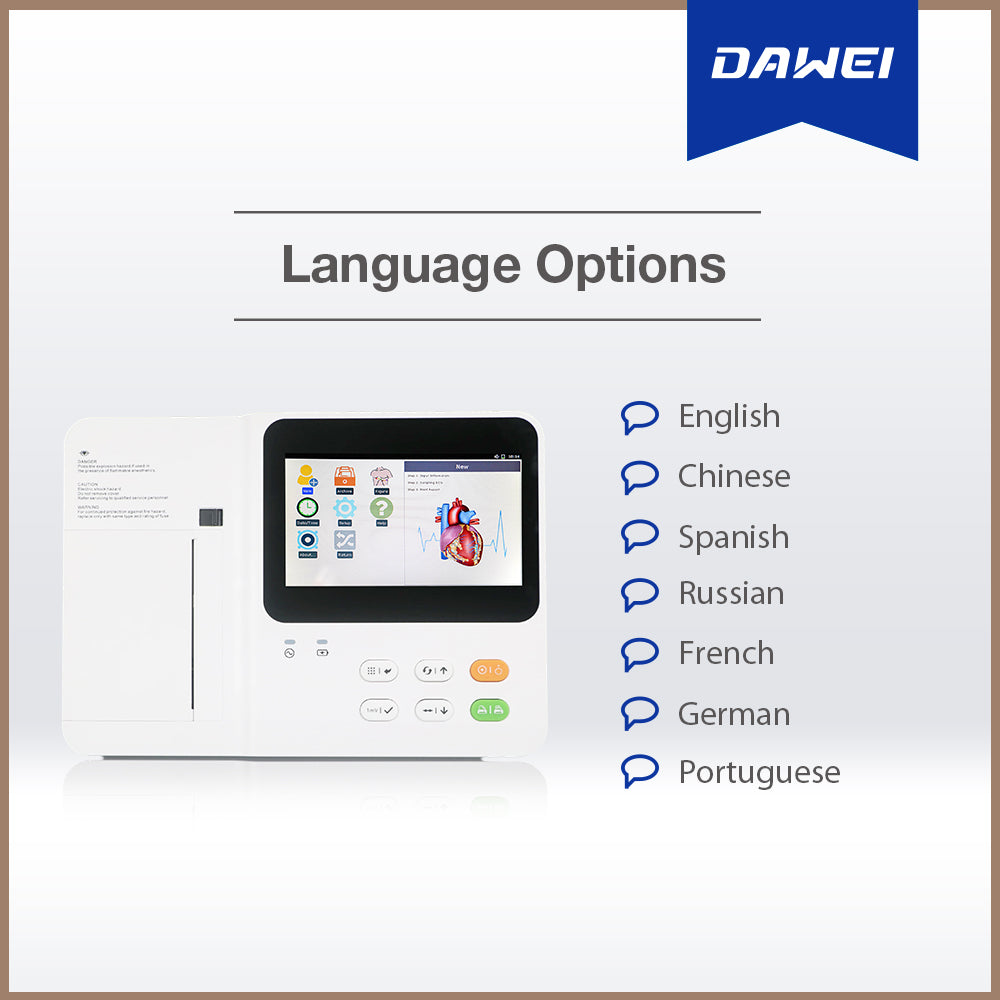

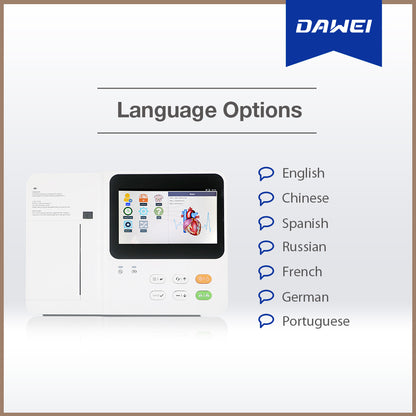

1. Multilingual Support: Operates seamlessly in 7 languages including Chinese, English, Russian, French, German, Portuguese, and Spanish.

2. Synchronized 12-Lead ECG Acquisition: Ensures precise synchronous recording for accurate diagnostics.

3. Vivid Display: Features a 7-inch high-definition, wide-angle color LCD screen with capacitive touch control, presenting crystal-clear 12-lead display.

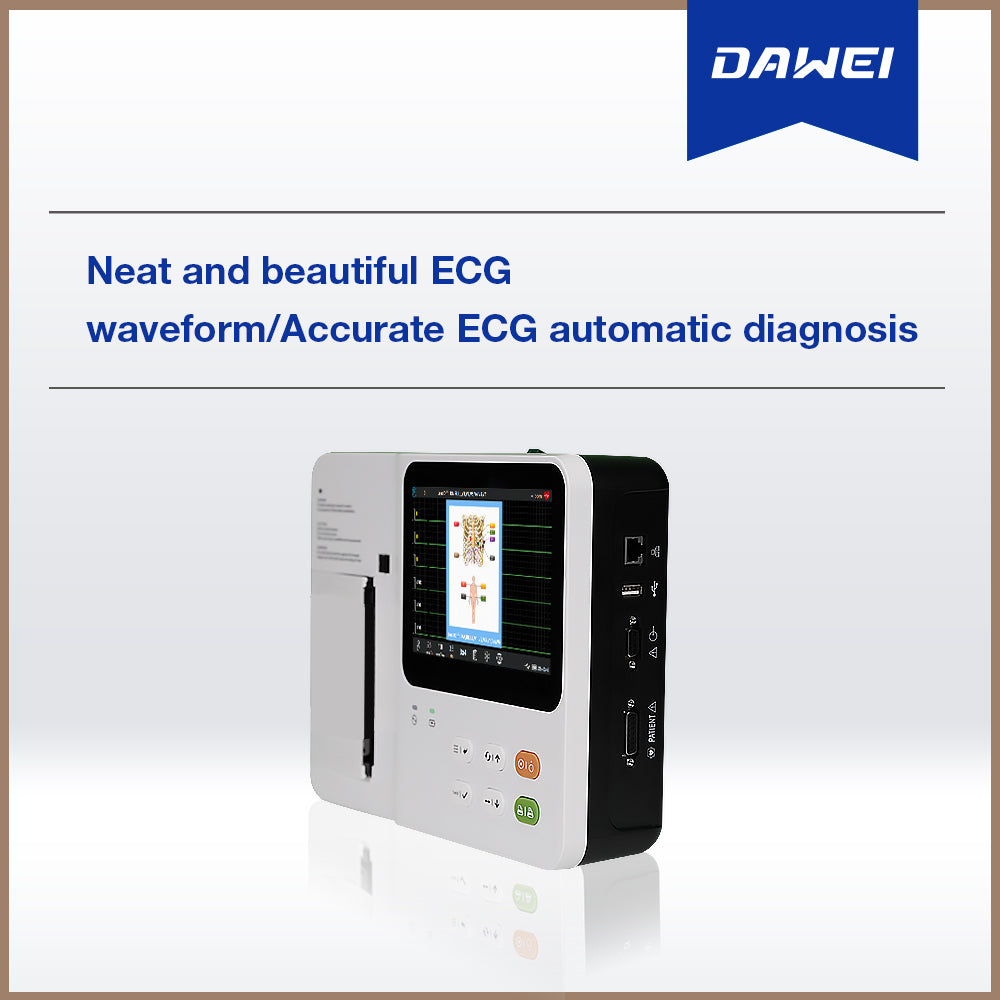

4. Comprehensive Diagnosis: Includes automatic diagnosis function, heart rate exceeding alarm, and customizable printing options for measurement and analysis reports.

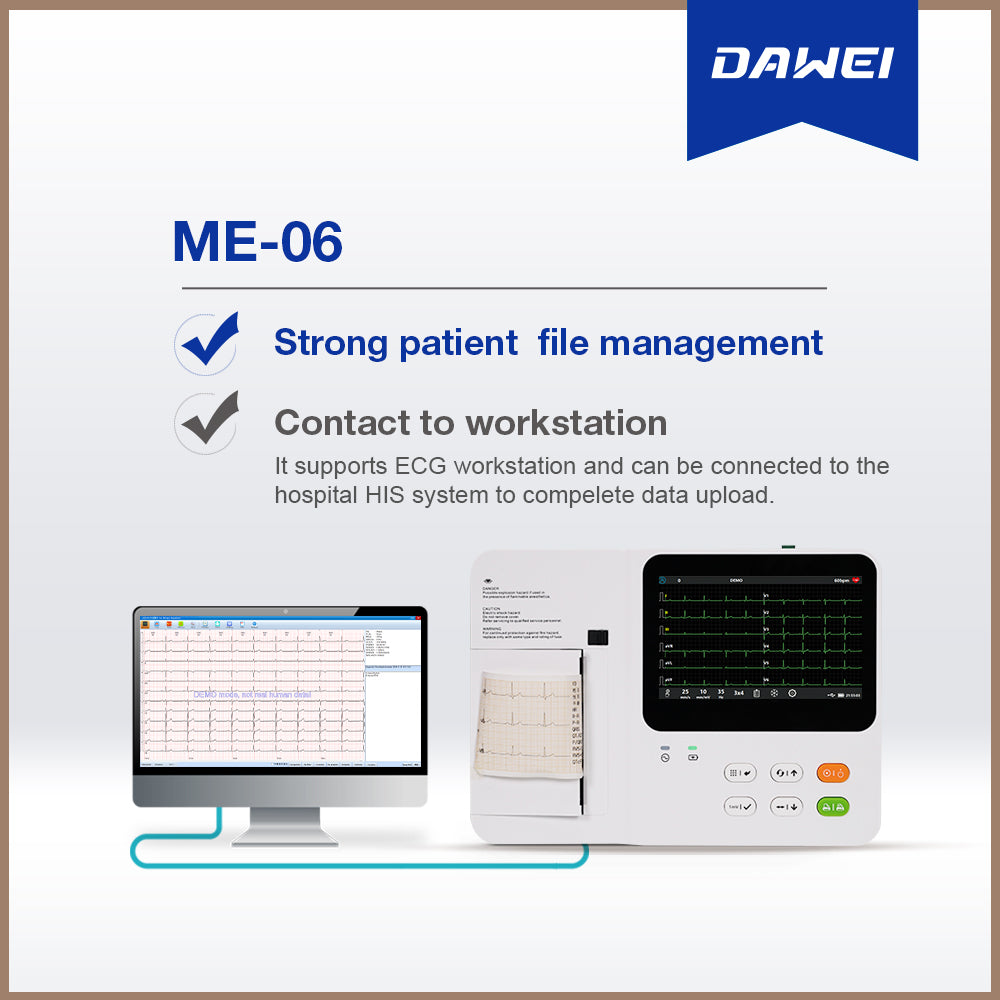

5. Comprehensive Functionality: Diverse recording & display modes, real-time waveform analysis, expandable memory, supports RS232, USB, and LAN network interfaces for seamless data transfer.

Dawei Medical ECG Machine ME06
ECG Device Technical Comparison

ECG Device Technical Specifications Comparison

Parameter 3-Channel ME03/6-Channel ME06 12-Channel ME12
Channels 3 channels/6 channels (ME03/ME06) 12 channels (ME12)
CMRR ≥100dB ≥100dB
Input Circuit Floating, Defibrillation Protection Floating, Defibrillation Protection
Input Circuit Current ≤0.1µA ≤0.1µA
Sampling Rate 24bit / 26000Hz 24bit / 26000Hz
Operation Mode Manual/Auto Manual/Auto
Filtering AC Filter, EMG Filter AC Filter, EMG Filter
Drift Filter Anti-Drift System Anti-Drift System
Input Impedance > 50MΩ > 50MΩ
Patient Leakage Current < 10µA < 10µA
Storage Format ECG Specific Format ECG Specific Format
Recording Paper Specifications Roll Thermal Paper
3-channel: 80mm×20m
6-channel: 110mm×20m		 Roll Thermal Paper
215mm×20m
Calibration Voltage 1mV ± 3% 1mV ± 3%
Polarization Voltage Tolerance ±500mV ±500mV
Time Constant ≥ 3.2s ≥ 3.2s
Frequency Response 0.05Hz - 165Hz 0.05Hz - 165Hz
Noise Level ≤ 15µVp-p ≤ 15µVp-p
Min. Detection Signal ≤ 20µV ≤ 20µV
Auto Mode Acquisition Time 8S, 12S, 24S, 36S, 60S 8S, 12S, 24S, 36S, 60S
Paper Speed 12.5 mm/s, 25mm/s, 50mm/s 12.5 mm/s, 25mm/s, 50mm/s
Sensitivity 5, 10, 20 (mm/mV ± 5%) 5, 10, 20 (mm/mV ± 5%)
Record Storage ≥ 500 records ≥ 500 records
Waveform Freeze Time 10S 10S
Print Density Adjustment 7 Levels Adjustable 7 Levels Adjustable
Auto Print Time Adjustment 8S, 12S, 24S, 36S, 60S 8S, 12S, 24S, 36S, 60S
Report Print Preview Pre-acquisition function Pre-acquisition function
External Printer Via ECG Workstation Via ECG Workstation
Recording/Printing 3/6 Channel High Resolution Thermal Print 12 Channel High Resolution Thermal Print

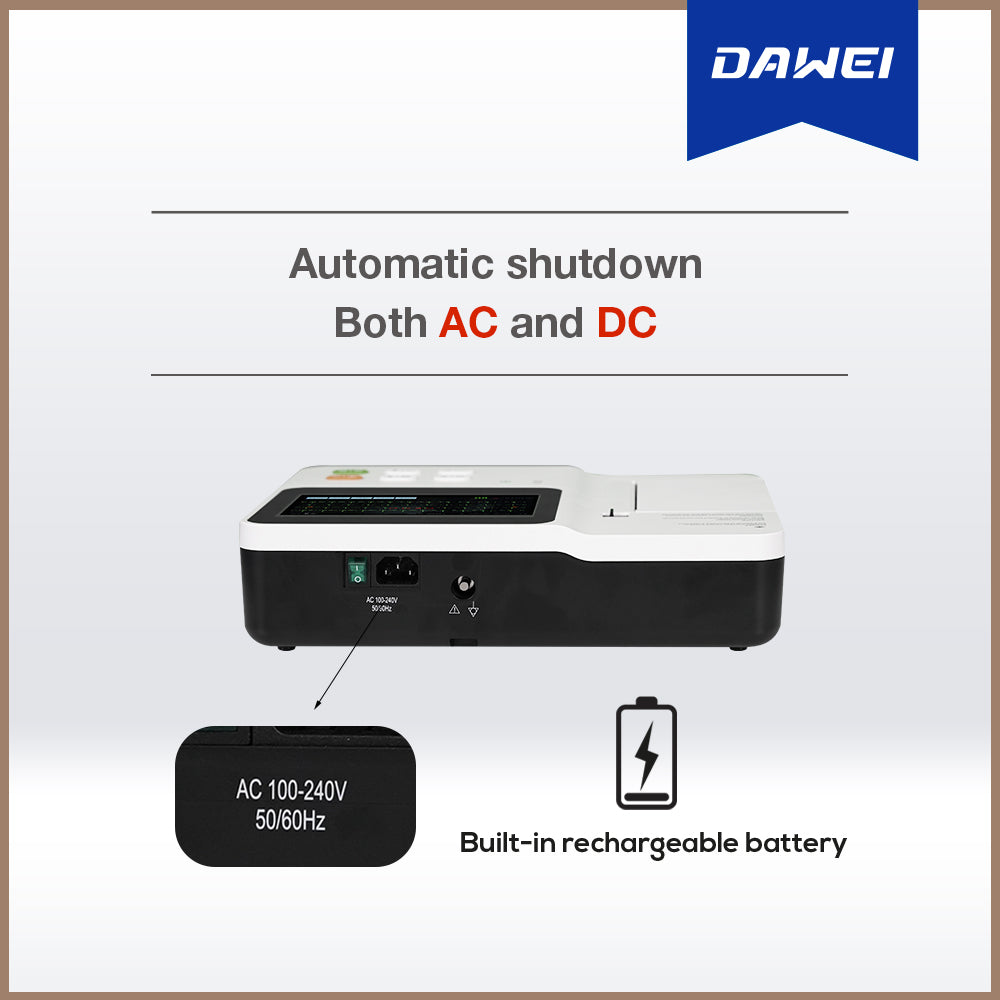

Battery 10.8V / 2600mAh (28.08Wh) 14.52V / 5200mAh (75.5Wh)

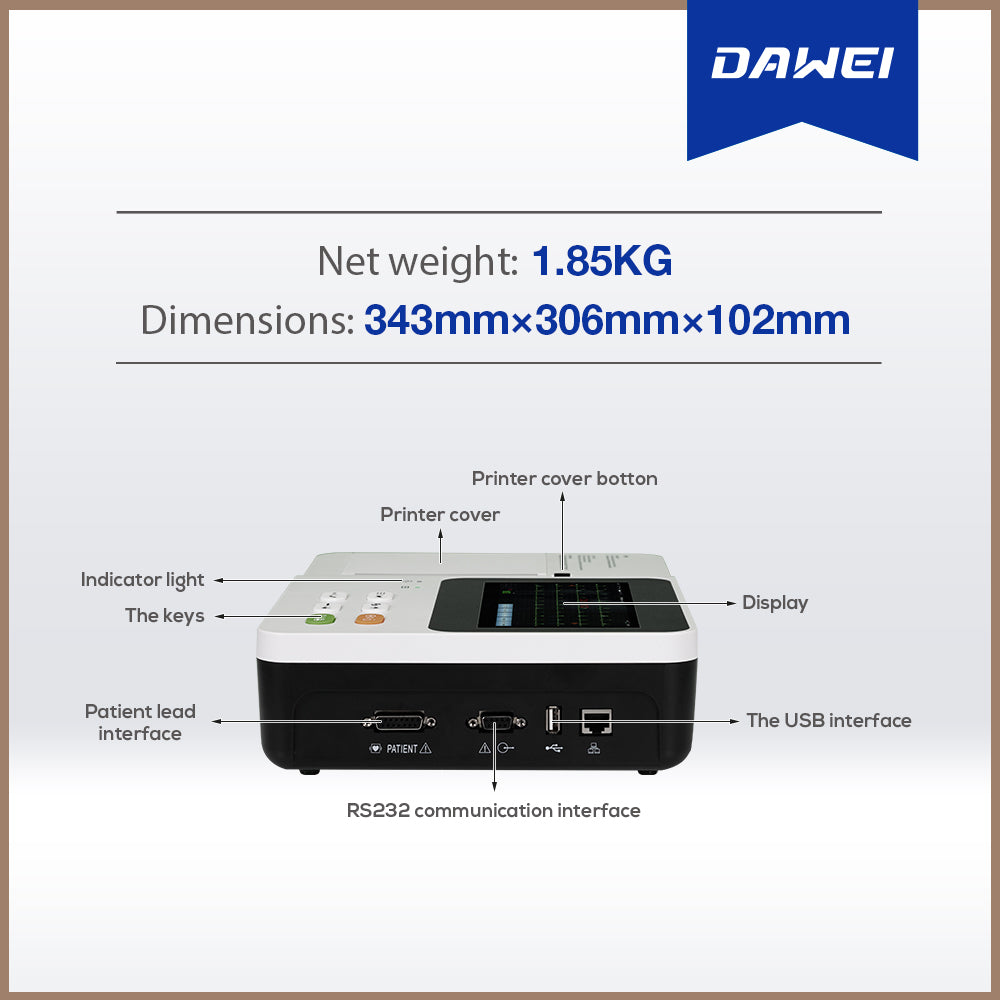

Dimensions & Net Weight 320mm×230mm×78mm; Net Weight: 1.85KG 343mm×306mm×102mm; Net Weight: 4.05KG
Packing Size & Gross Weight 390mm×300mm×215mm; Gross Weight: 4.5KG 400mm×370mm×240mm; Gross Weight: 7KG
Request More Information

Frequently Asked Questions

What is the difference between the 3-channel, 6-channel, and 12-channel ECG machines?

  • 3-channel ME03: Compact and portable design, displays and records 3 ECG channels simultaneously, ideal for basic ECG monitoring in clinics and small healthcare facilities.
  • 6-channel ME06: Mid-range model that displays and records 6 ECG channels simultaneously, offering a balance between functionality and cost for medium-sized practices.
  • 12-channel ME12: Advanced model that captures all 12 ECG leads simultaneously, providing comprehensive heart activity data for hospitals and specialized cardiac care facilities.

What quality certifications do Dawei ECG machines have?

Dawei's ECG machines are manufactured under ISO13485 quality management system certification, ensuring they meet international standards for medical device manufacturing and quality control.

What is the warranty period for Dawei ECG machines?

All Dawei ECG machines (3-channel ME03, 6-channel ME06, and 12-channel ME12) come with a 2-year warranty. This warranty covers manufacturing defects and hardware failures under normal operating conditions.

Are software upgrades available for Dawei ECG machines?

Yes, Dawei provides software updates for all ECG machine models. These updates can be installed via USB drive or through the online technician service. Software upgrades may add new features or improve existing functionality.
