Hospital Clinic Health Care Center Portable 3 Channel ECG Machine ME03 | DAWEI

Hospital Clinic Health Care Center Portable 3 Channel ECG Machine ME03 | DAWEI

Regular price $539.00 USD
Regular price $679.00 USD Sale price $539.00 USD
Sale Sold out
Taxes included
Model

WHAT'S IN THE BOX?

ECG Machine ME03 - Group A -button type ECG cable

  • Main unit *1

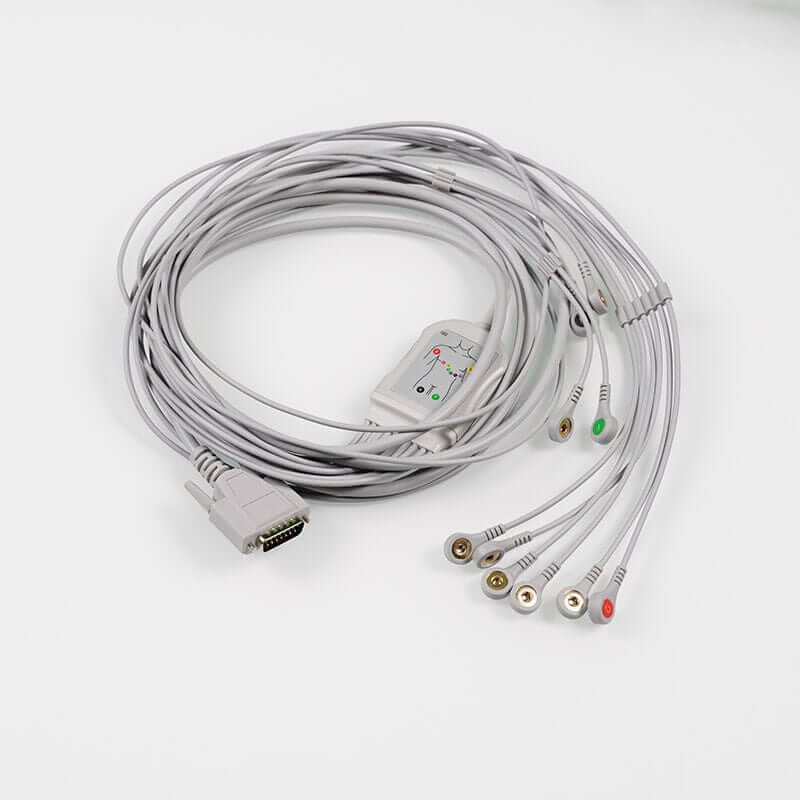

  • 12-Lead ECG cable(button type)  *1
  • Disposable electrode pads *10 pcs

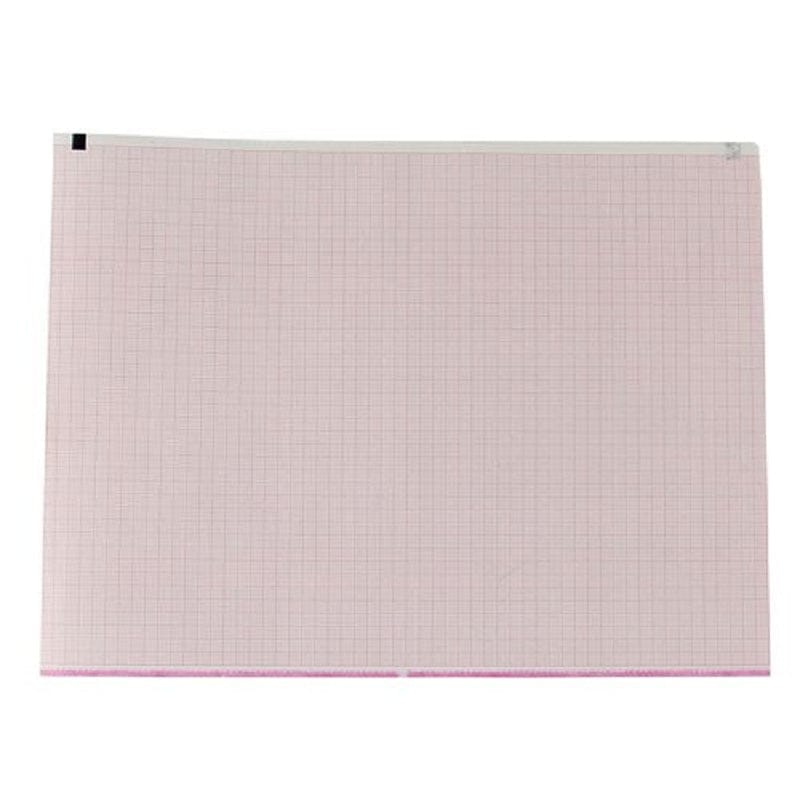

  • Printing paper *1 roll
  • Power cable *1

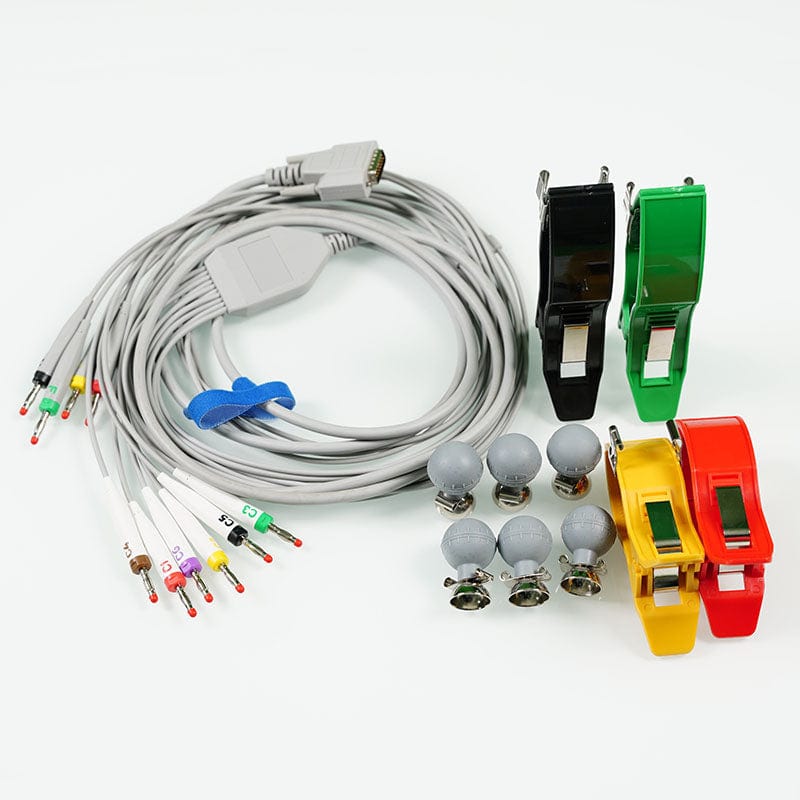

ECG Machine ME03 - Group B -plug-in type ECG cable

  • Main unit *1

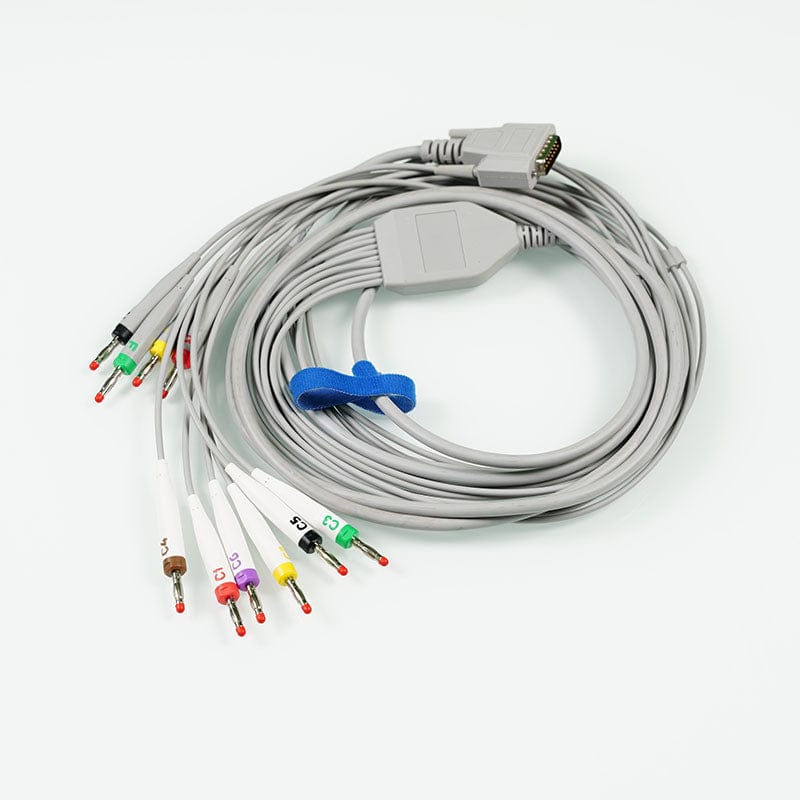

  • 12-Lead ECG cable(plug-in type)  *1

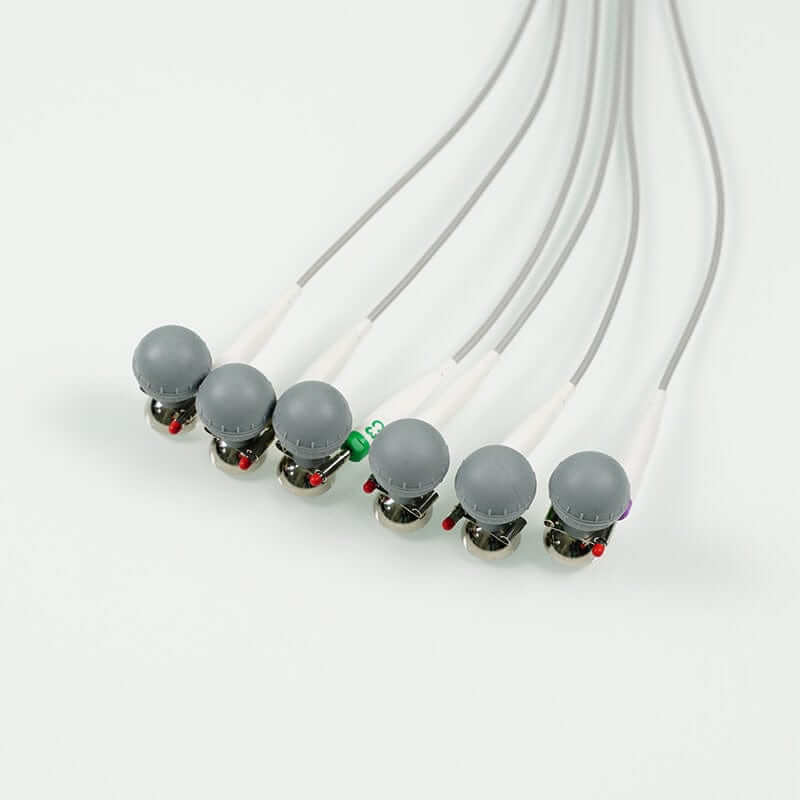

  • Suction ball (adult) *6 pcs

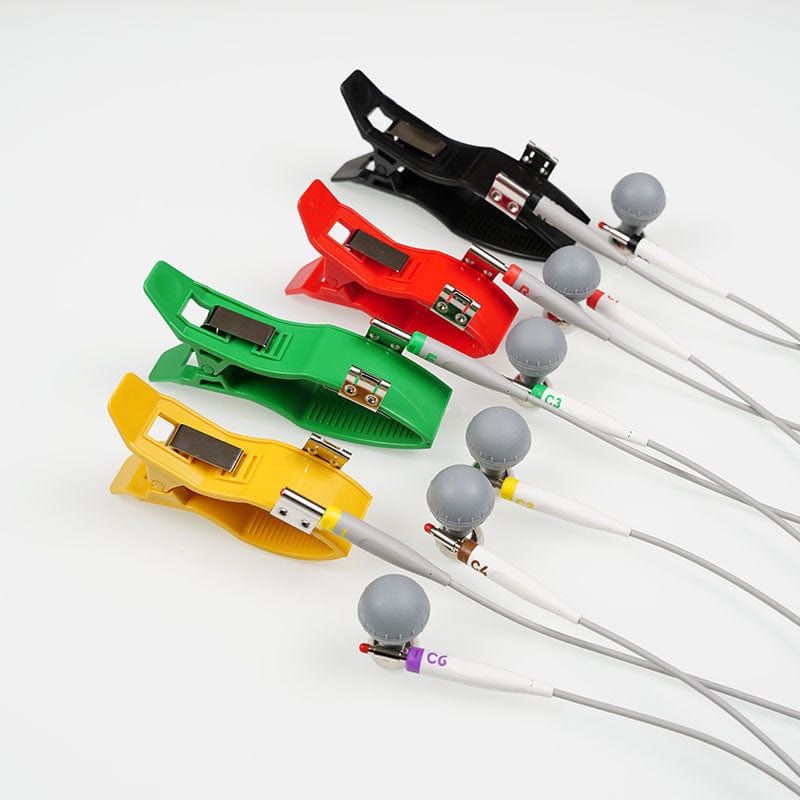

  • Limb clip (adult) *4 pcs
  • Printing paper *1 roll
  • Power cable *1

ECG Machine ME03 - Group C -clamp type ECG cable

  • Main unit *1

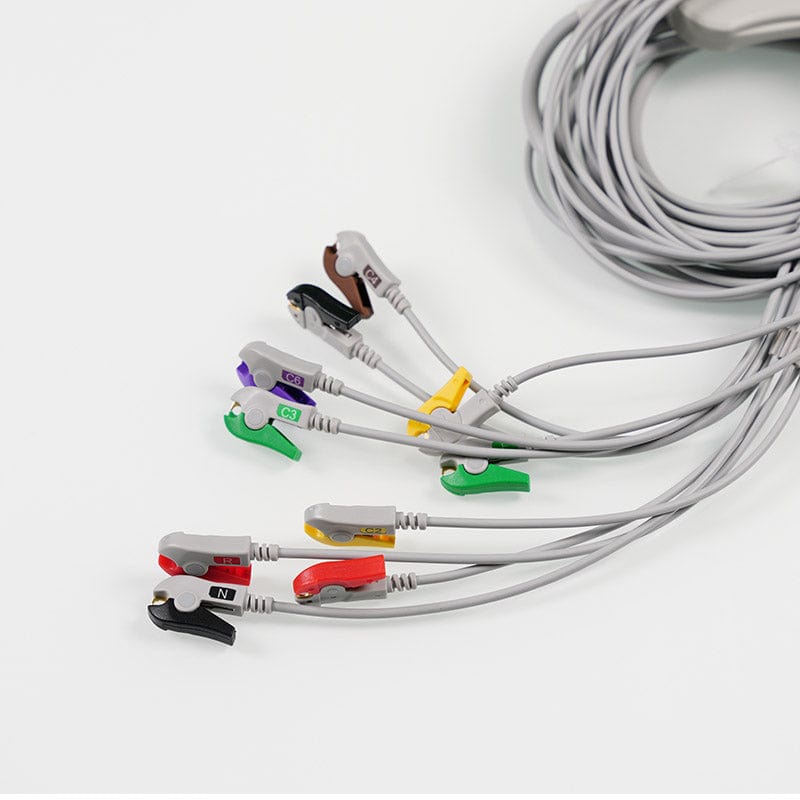

  • 12-Lead ECG cable(clamp type)  *1

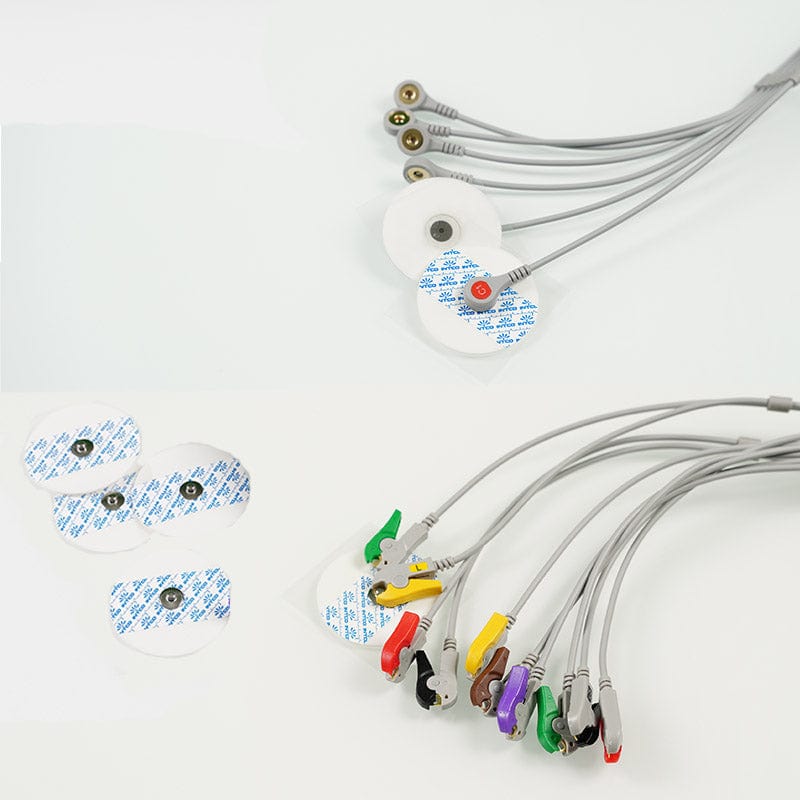

  • Disposable electrode pads *10 pcs
  • Printing paper *1 roll
  • Power cable *1

DELIVERY & RETURN

  • US orders include taxes & shipping, processed and delivered within 10-15 business days.
  • Worldwide free shipping on orders over US$59.
  • 30-day returns accepted from delivery date.
View full details

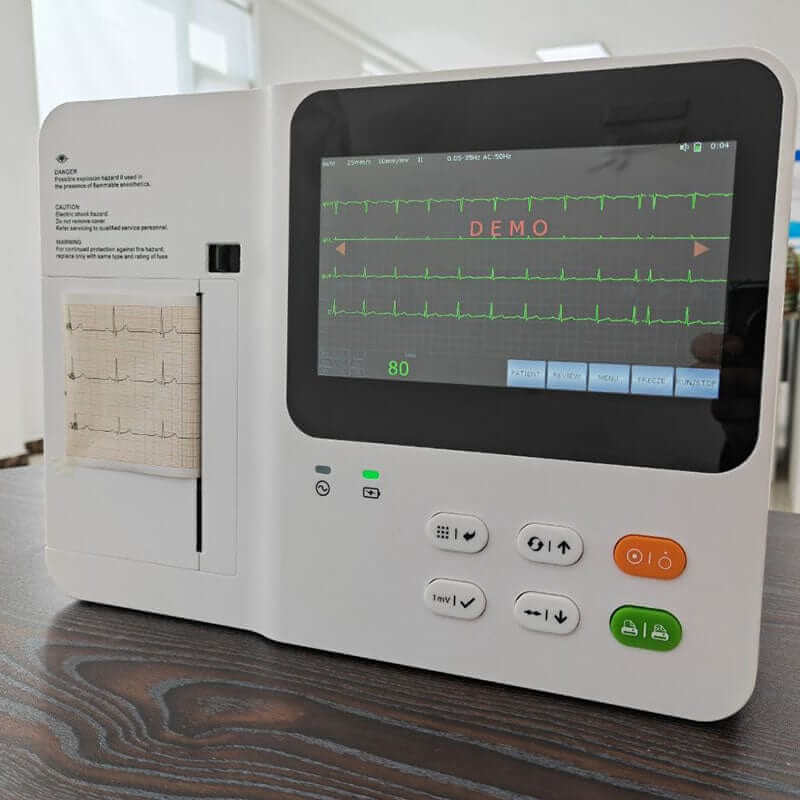

Brand New Portable 7-inch Touch Screen 3 Channel ECG Machine With Printer ME03

Portable ECG Machine ME03

The ME03 Portable ECG Machine delivers hospital-grade cardiac diagnostics in a compact, portable device. With its advanced 3-channel capabilities and built-in printer, medical professionals can now perform accurate diagnosis anywhere - from remote clinics to emergency situations in the field.

Get quick & reliable heart rhythm analysis on the go with precision 12-lead synchronized capture technology that ensures consistent, high-quality results every time. The intuitive touchscreen interface makes operation simple for healthcare providers of all experience levels.

Premium Features for Professional Healthcare Providers

A

Multilingual Interface

Operate effortlessly in Chinese, English, Russian, French, German, Portuguese, or Spanish for global usability.

12

Precision 12-Lead Synchronized Capture

Ensures accurate, simultaneous 12-lead ECG recordings for reliable clinical analysis.

HD

7-Inch HD Touchscreen

Features a 7-inch high-definition, wide-angle color LCD with crystal-clear 12-lead visualization and intuitive touch controls.

DX

Comprehensive Diagnosis

Includes automatic diagnosis function, heart rate exceeding alarm, and customizable printing options for measurement and analysis reports.

U LAN

Comprehensive Functionality

Diverse operating modes, energy-efficient design, expandable memory, and supports RS232, USB, and LAN network interfaces for seamless data transfer.

Expert Training & Technical Support

Dedicated 1:1 onboarding sessions with engineers, including live remote operation guidance and lifetime troubleshooting assistance via secure video calls.

Technical Specifications

Specification Details
Display 7-inch HD color touchscreen LCD
Channels 3-channel ECG recording
Lead System Standard 12-lead with synchronized capture
Languages Chinese, English, Russian, French, German, Portuguese, Spanish
Printing Built-in thermal printer with customizable reports
Connectivity RS232, USB, LAN network interfaces
Portability Lightweight design with rechargeable battery
Memory Expandable storage for patient records
Warranty 2-year manufacturer warranty

What Healthcare Professionals Say

"As the head physician at a rural clinic, the ME03 has dramatically improved our cardiac diagnostic capabilities. The multilingual interface is perfect for our diverse staff, and the precision of the 12-lead capture gives us confidence in every reading. The technical support has been exceptional whenever we've needed assistance."

- Dr. David Morinigo, MD, Cardiologist

"Our emergency response team relies on the ME03 during critical situations. The touchscreen is responsive even when wearing gloves, and the quick analysis features help us make fast decisions in the field. The battery life is impressive, lasting through multiple shifts without recharging."

- James Rodriguez, Emergency Medical Technician

Ready to Upgrade Your Cardiac Diagnostic Capabilities?

Dawei Medical ECG Machine ME03
ECG Device Technical Comparison

ECG Device Technical Specifications Comparison

Parameter 3-Channel ME03/6-Channel ME06 12-Channel ME12
Channels 3 channels/6 channels (ME03/ME06) 12 channels (ME12)
CMRR ≥100dB ≥100dB
Input Circuit Floating, Defibrillation Protection Floating, Defibrillation Protection
Input Circuit Current ≤0.1µA ≤0.1µA
Sampling Rate 24bit / 26000Hz 24bit / 26000Hz
Operation Mode Manual/Auto Manual/Auto
Filtering AC Filter, EMG Filter AC Filter, EMG Filter
Drift Filter Anti-Drift System Anti-Drift System
Input Impedance > 50MΩ > 50MΩ
Patient Leakage Current < 10µA < 10µA
Storage Format ECG Specific Format ECG Specific Format
Recording Paper Specifications Roll Thermal Paper
3-channel: 80mm×20m
6-channel: 110mm×20m
Roll Thermal Paper
215mm×20m
Calibration Voltage 1mV ± 3% 1mV ± 3%
Polarization Voltage Tolerance ±500mV ±500mV
Time Constant ≥ 3.2s ≥ 3.2s
Frequency Response 0.05Hz - 165Hz 0.05Hz - 165Hz
Noise Level ≤ 15µVp-p ≤ 15µVp-p
Min. Detection Signal ≤ 20µV ≤ 20µV
Auto Mode Acquisition Time 8S, 12S, 24S, 36S, 60S 8S, 12S, 24S, 36S, 60S
Paper Speed 12.5 mm/s, 25mm/s, 50mm/s 12.5 mm/s, 25mm/s, 50mm/s
Sensitivity 5, 10, 20 (mm/mV ± 5%) 5, 10, 20 (mm/mV ± 5%)
Record Storage ≥ 500 records ≥ 500 records
Waveform Freeze Time 10S 10S
Print Density Adjustment 7 Levels Adjustable 7 Levels Adjustable
Auto Print Time Adjustment 8S, 12S, 24S, 36S, 60S 8S, 12S, 24S, 36S, 60S
Report Print Preview Pre-acquisition function Pre-acquisition function
External Printer Via ECG Workstation Via ECG Workstation
Recording/Printing 3/6 Channel High Resolution Thermal Print 12 Channel High Resolution Thermal Print
Battery 10.8V / 2600mAh (28.08Wh) 14.52V / 5200mAh (75.5Wh)
Dimensions & Net Weight 320mm×230mm×78mm; Net Weight: 1.85KG 343mm×306mm×102mm; Net Weight: 4.05KG
Packing Size & Gross Weight 390mm×300mm×215mm; Gross Weight: 4.5KG 400mm×370mm×240mm; Gross Weight: 7KG
Request More Information

Frequently Asked Questions

What is the difference between the 3-channel, 6-channel, and 12-channel ECG machines?

  • 3-channel ME03: Compact and portable design, displays and records 3 ECG channels simultaneously, ideal for basic ECG monitoring in clinics and small healthcare facilities.
  • 6-channel ME06: Mid-range model that displays and records 6 ECG channels simultaneously, offering a balance between functionality and cost for medium-sized practices.
  • 12-channel ME12: Advanced model that captures all 12 ECG leads simultaneously, providing comprehensive heart activity data for hospitals and specialized cardiac care facilities.

What quality certifications do Dawei ECG machines have?

Dawei's ECG machines are manufactured under ISO13485 quality management system certification, ensuring they meet international standards for medical device manufacturing and quality control.

What is the warranty period for Dawei ECG machines?

All Dawei ECG machines (3-channel ME03, 6-channel ME06, and 12-channel ME12) come with a 2-year warranty. This warranty covers manufacturing defects and hardware failures under normal operating conditions.

Are software upgrades available for Dawei ECG machines?

Yes, Dawei provides software updates for all ECG machine models. These updates can be installed via USB drive or through the online technician service. Software upgrades may add new features or improve existing functionality.
