Wireless Phone Ultrasound Probe Color Doppler Ultrasound Machine Linear Convex 128 Elements Support IOS Android | DAWEI

Wireless Phone Ultrasound Probe Color Doppler Ultrasound Machine Linear Convex 128 Elements Support IOS Android | DAWEI

Prix habituel $1,519.00 USD
Prix habituel $2,089.00 USD Prix promotionnel $1,519.00 USD
En vente Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.
Model

Buy 2 or more, enjoy 5% off,
automatically reduced at checkout.

Phone Ultrasound Wireless wifi handheld pocket color Doppler ultrasound for home use, convex linear micro-convex dual-probe phrased array probe 128 Elements

Product Benefits:

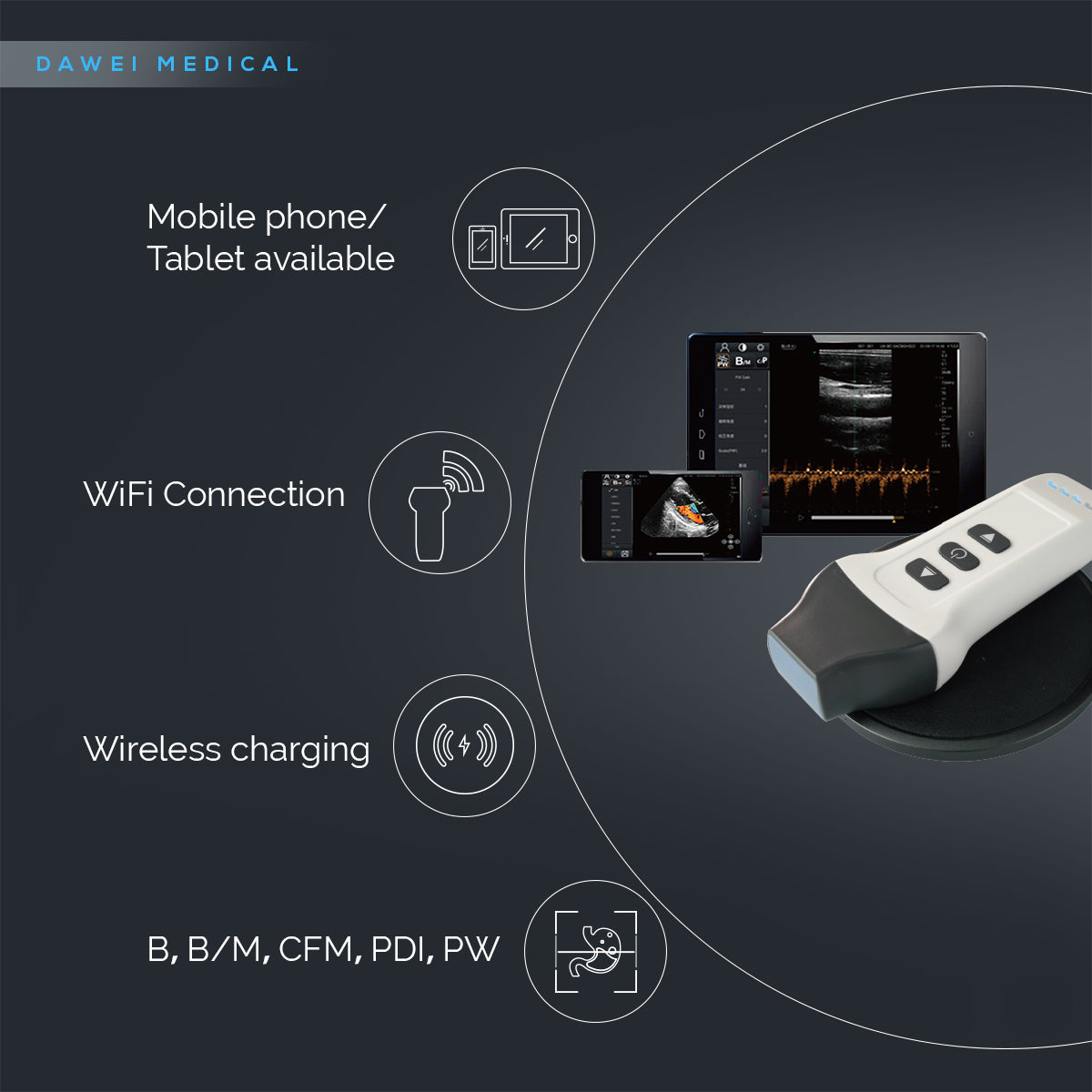

1. Flexible collocation

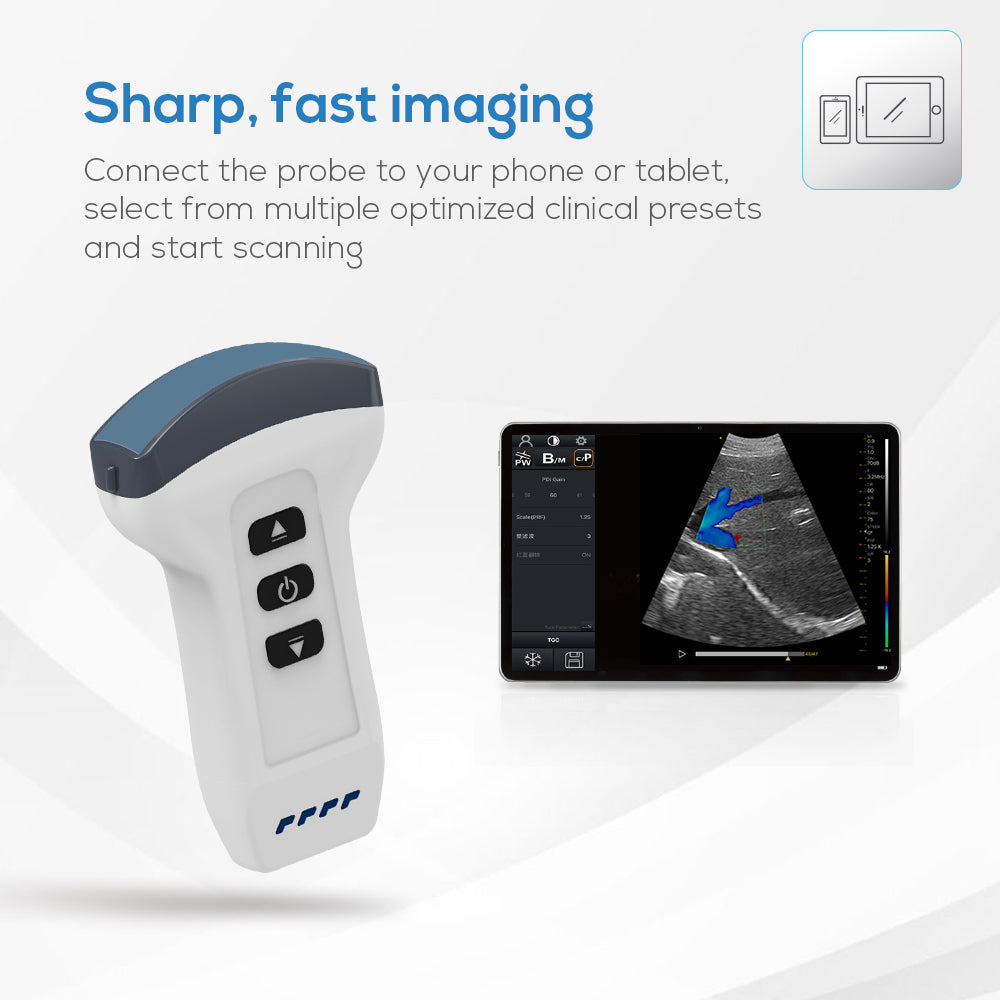

Can be connected to mobile phones or tablets with different screen sizes based on the user's needs, support Android system & Apple IOS.

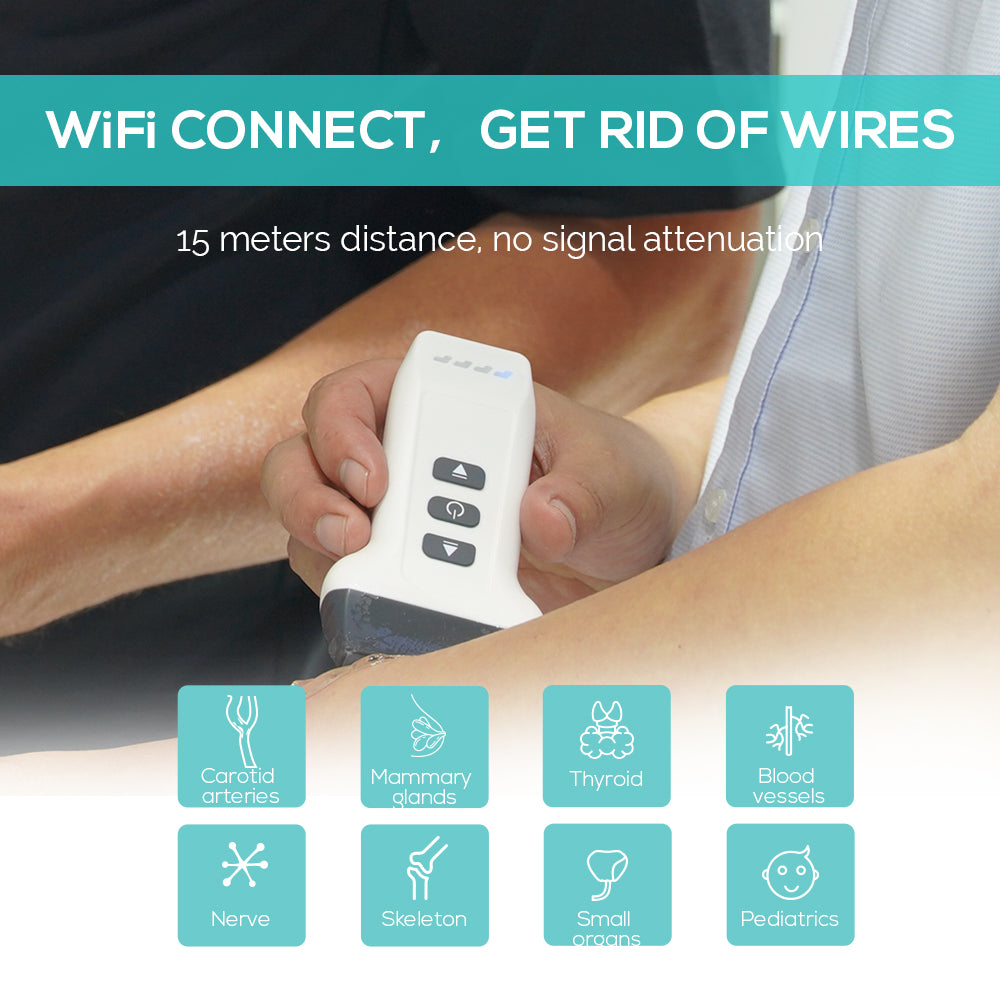

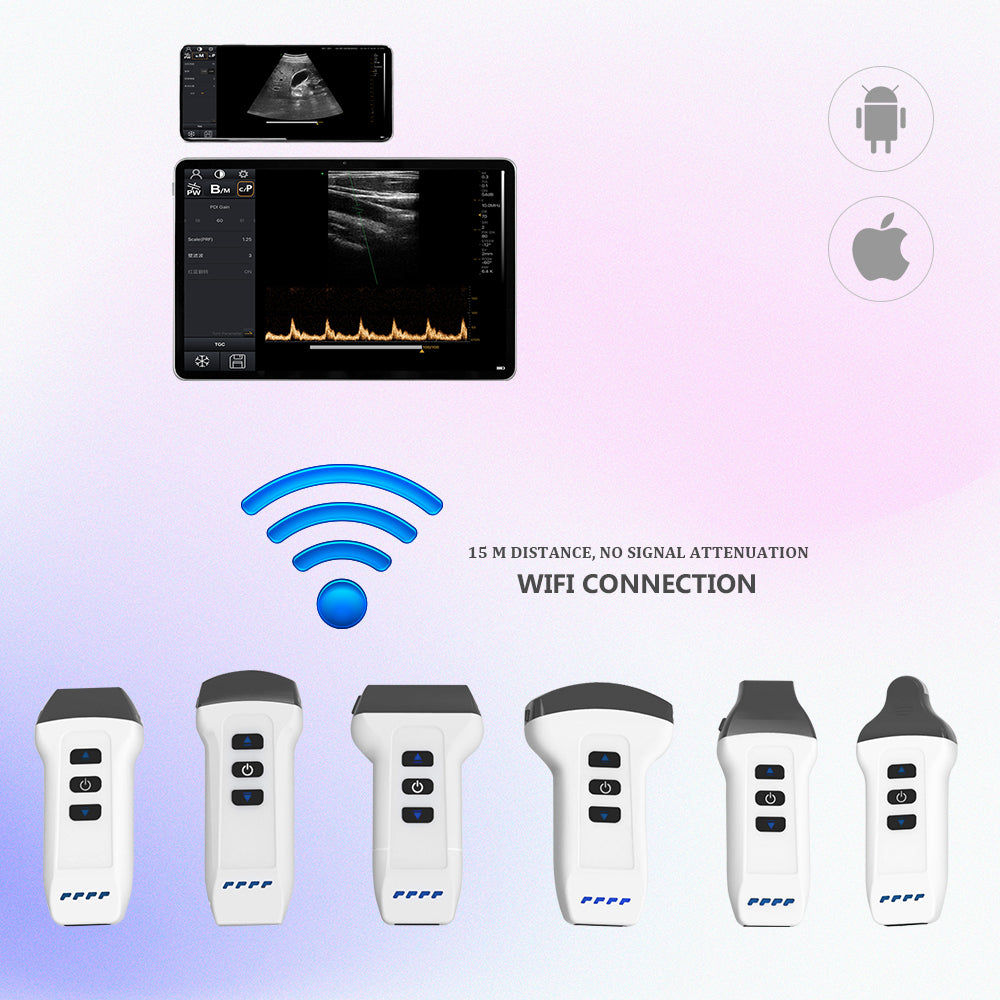

2. Wireless connectivity
Can be operated from a distance of up to 15 meters without any reduction in the quality of the signal.

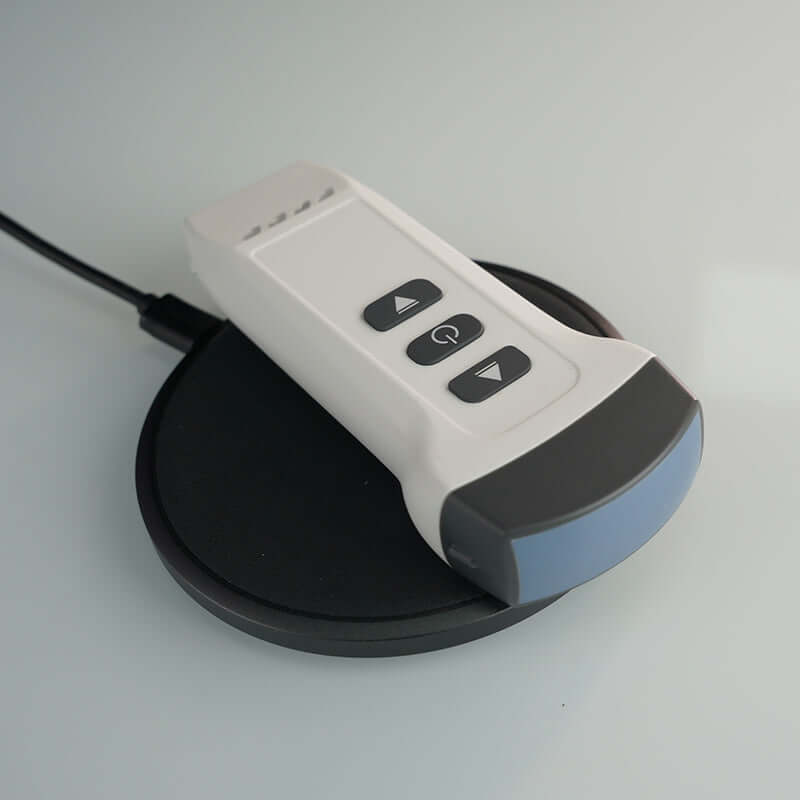

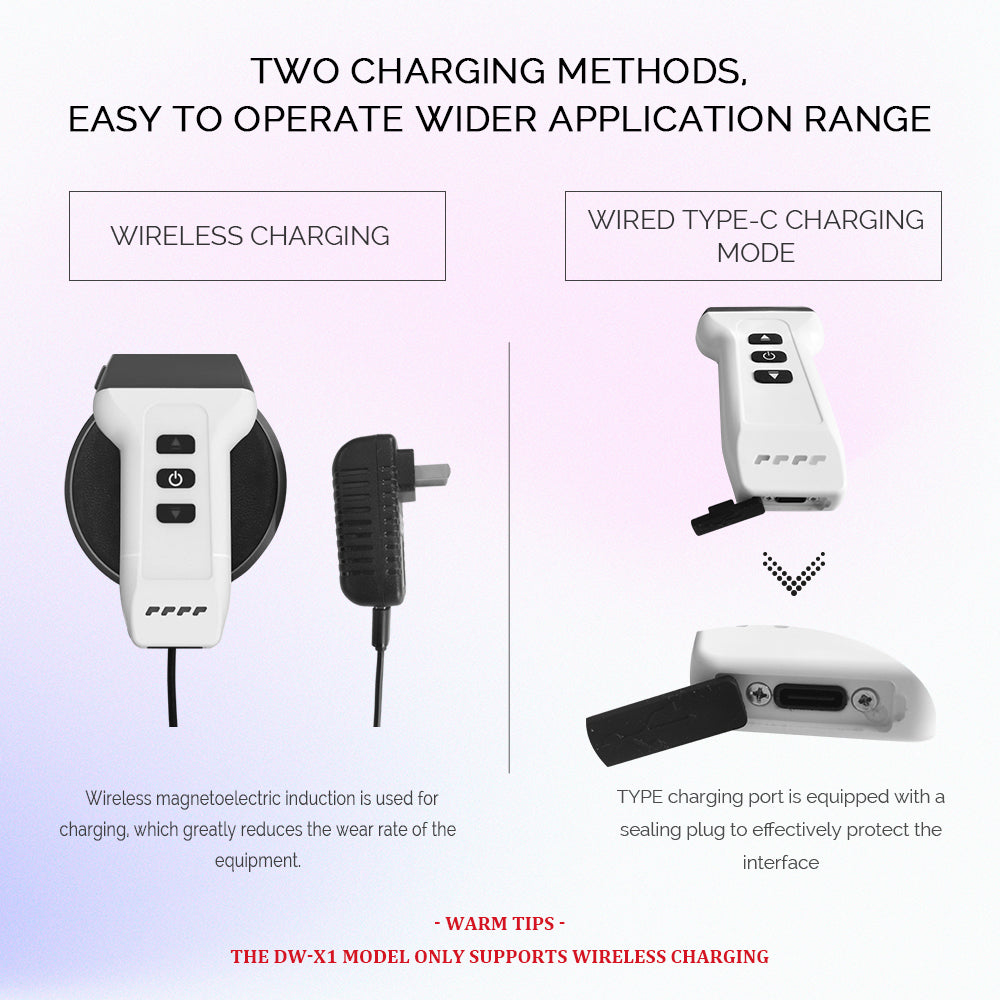

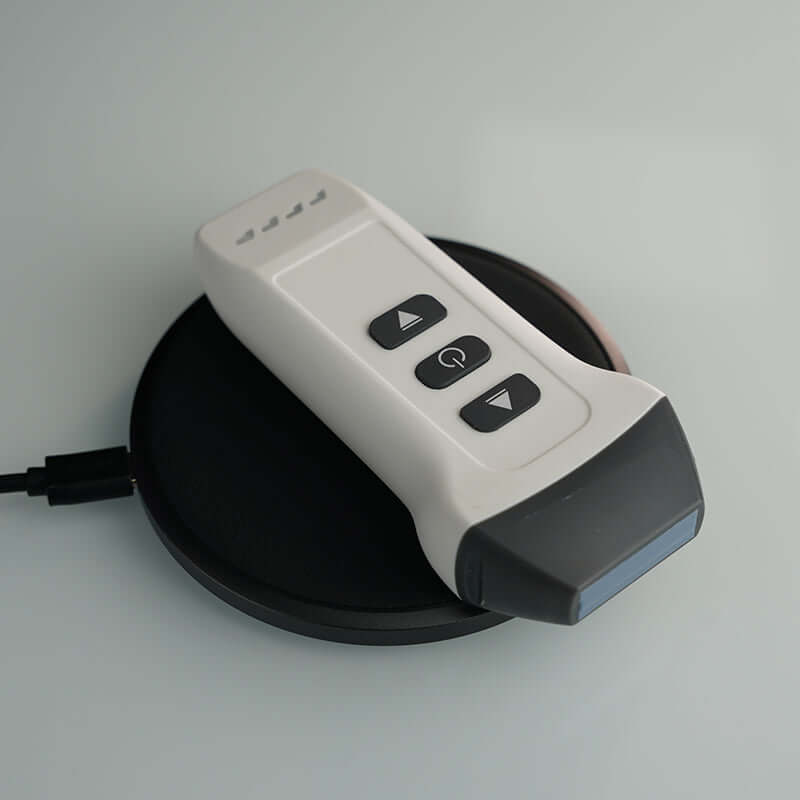

3. Wireless charging, convenient and fast.
Invisible charging is carried out by wireless magnetic induction charging, which greatly reduces the wear rate of equipment, has a wider range of applications, easy to operate, and can be charged at any time.
4. Use time ≈ 2 hours
Wireless charging at any time to extend the use time
* Battery capacity 1350mAh

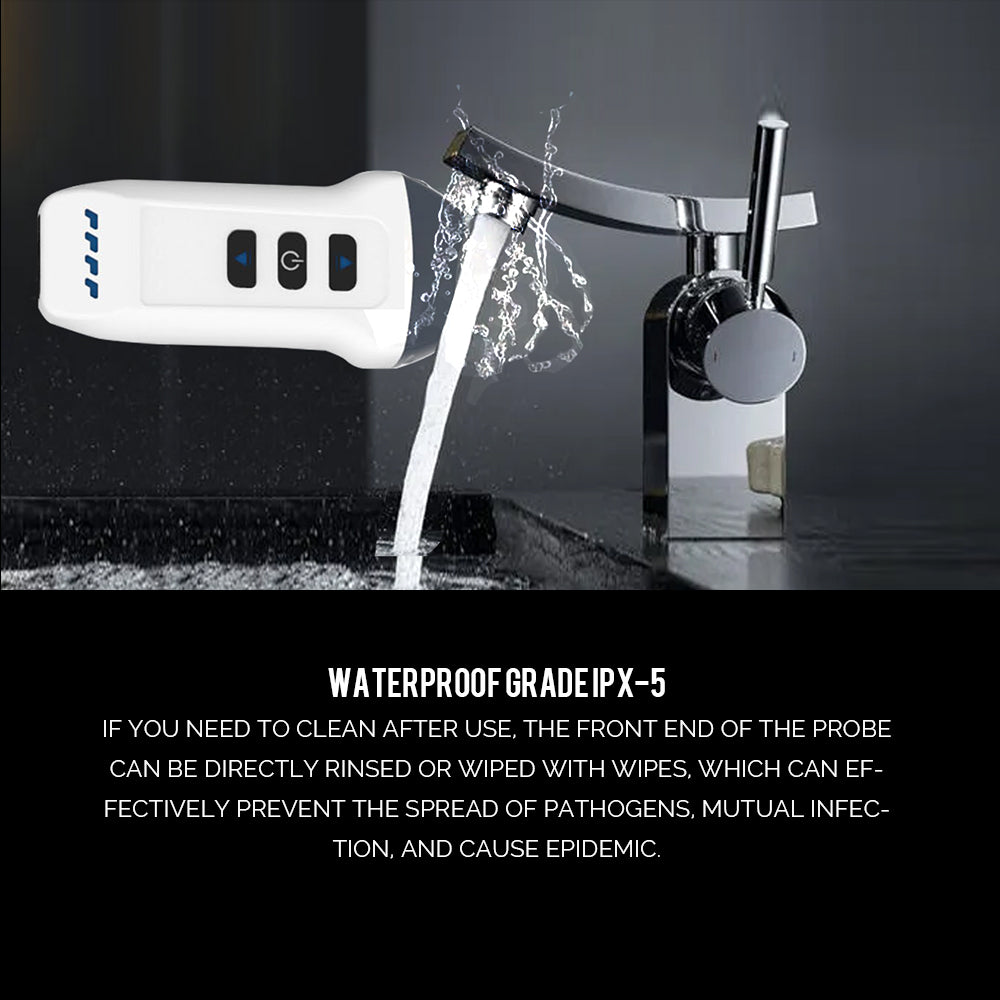

5. Waterproof grade IPX-5
If it needs to be cleaned after use, the front end of the probe can be directly rinsed or wiped with wet wipes, which can effectively prevent the spread of pathogens and mutual infection, causing epidemics.

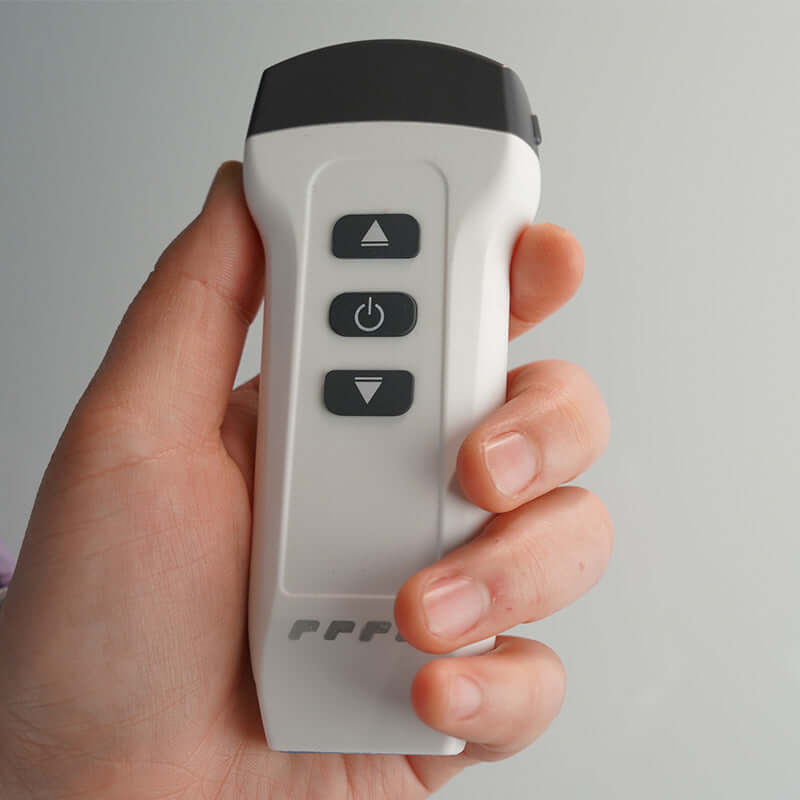

6. One-button switch on/off, multiple states are clearly visible
The power indicator is displayed in real time, which can effectively control the use time and efficiency.

Overview:

Check mode: B, B/M, CFM, PDI, PW.
Product function parameters:
Gain GN: G30~G105
Depth D: 20mm-305mm
Image enhancement (SRI): 0-4 grades, 5 levels
Wall filter: a total of 16 levels adjustable
Measurement aid: Measuring magnifier
Puncture:
In-Plane
Out-Plane

Introduce Model Number of elements Frequency

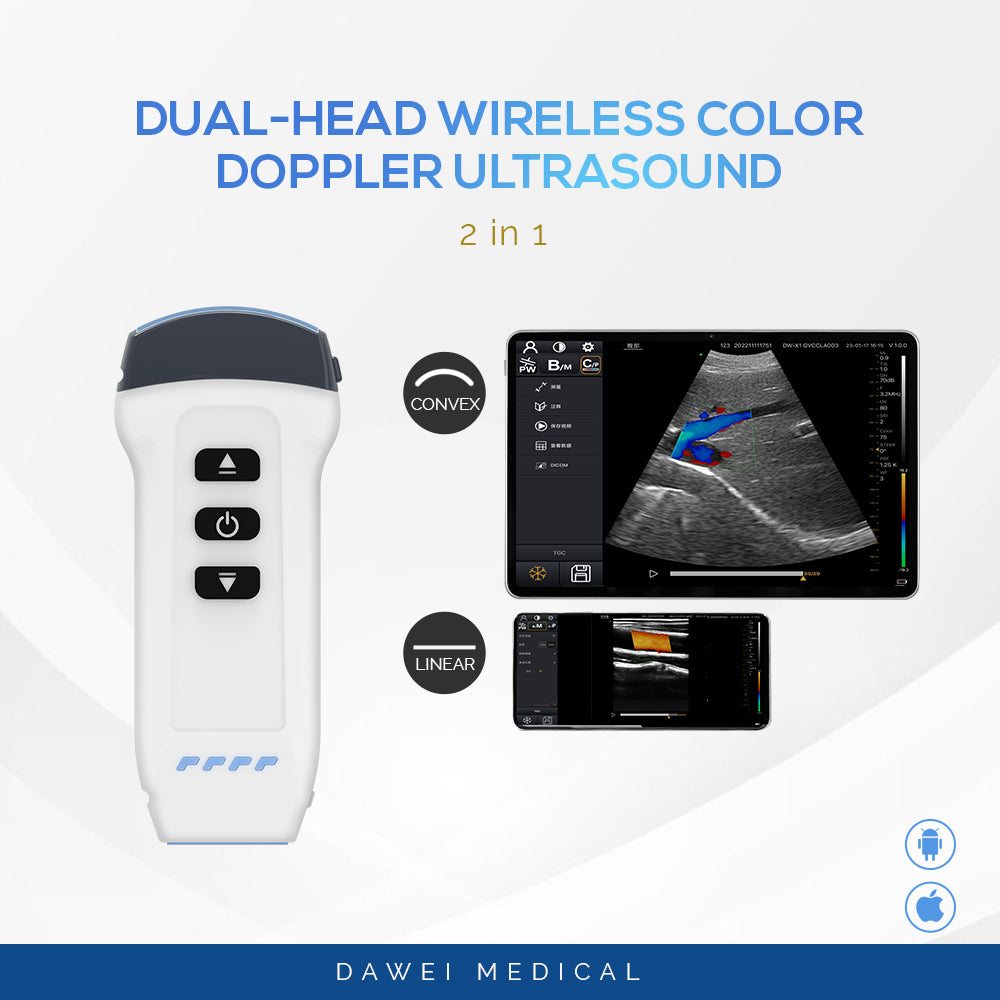

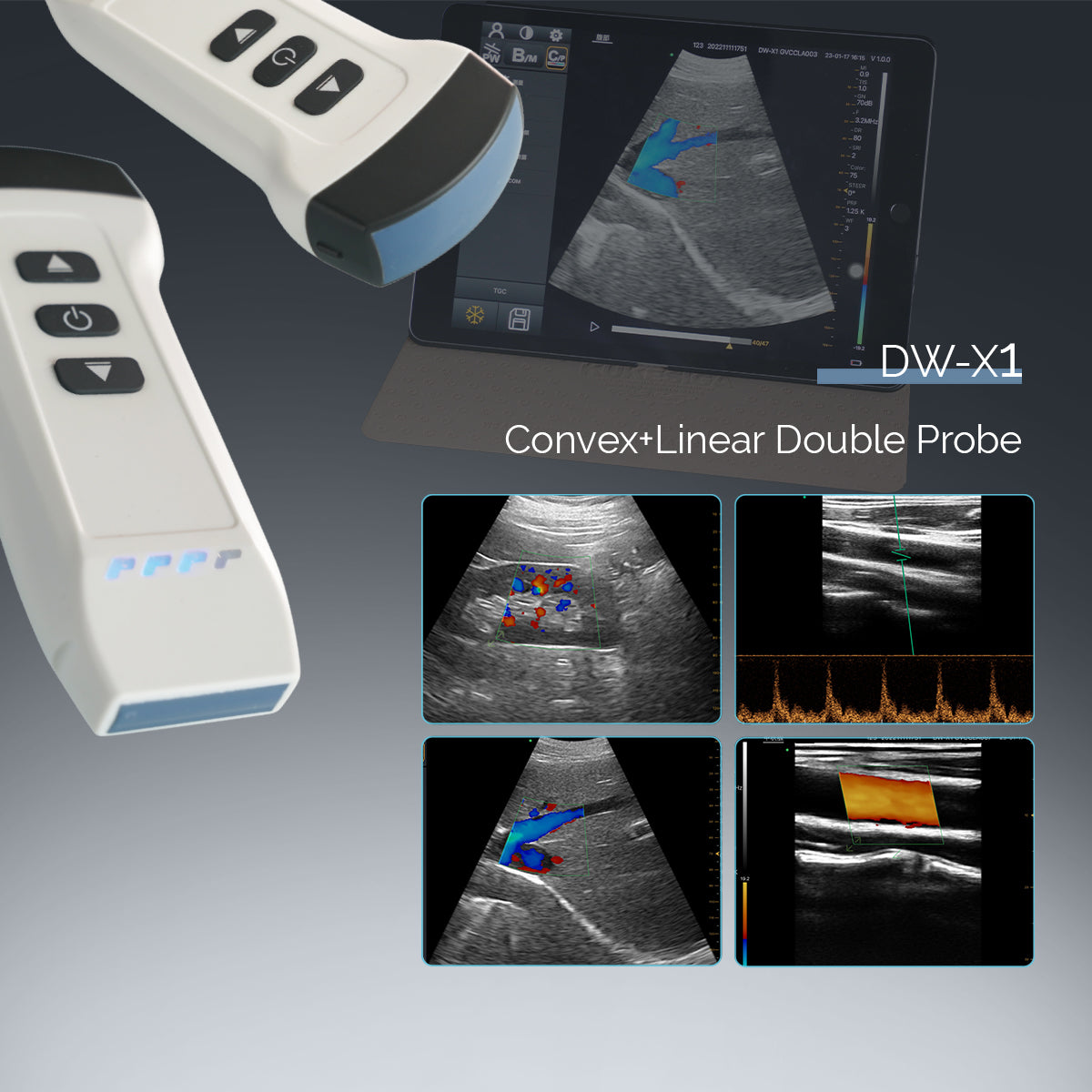

Convex linear double-head probes DW-X1 64

3.2MHz,

7.5MHz

Convex array probe DW-C1 80 3.3MHz

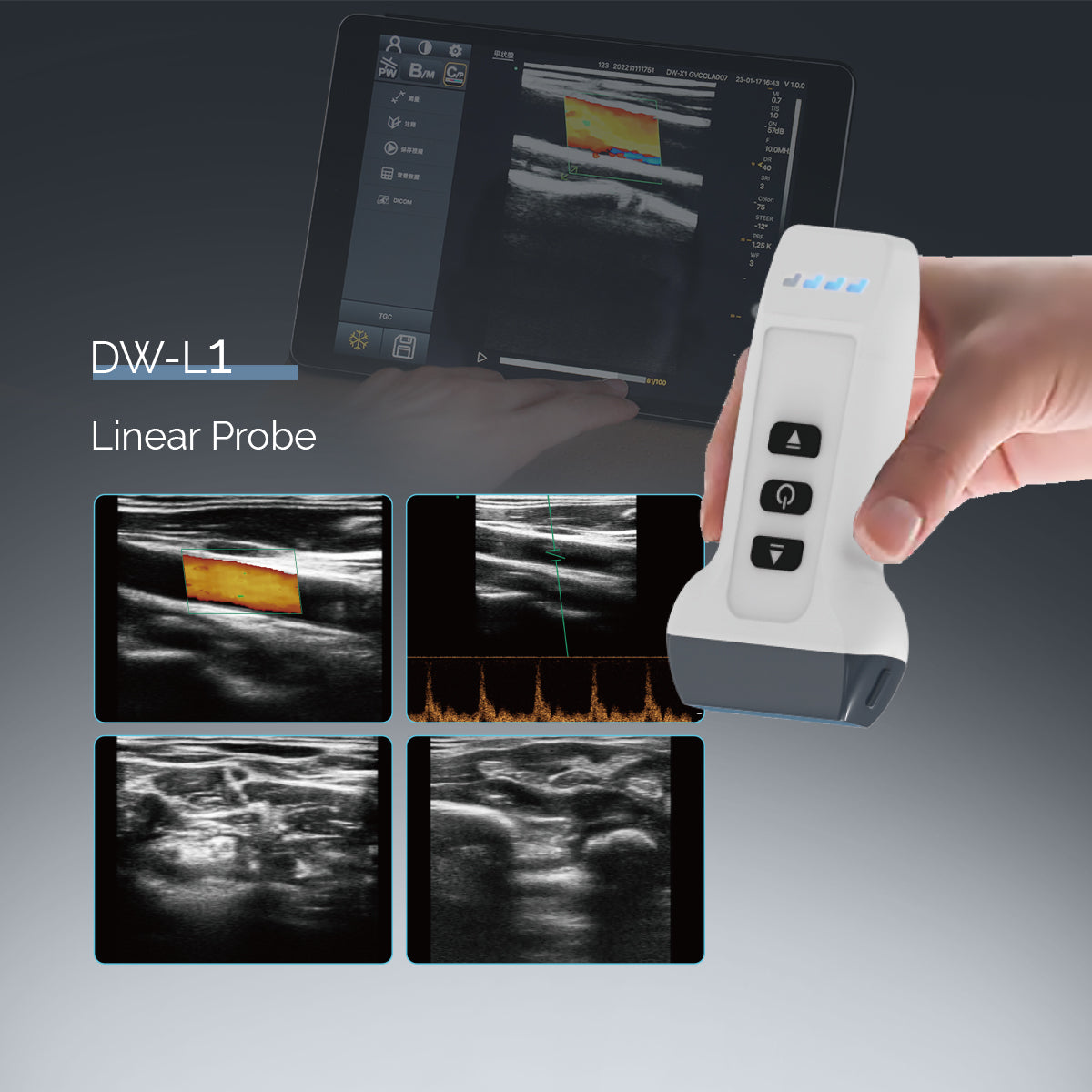

Linear array probe DW-L1 128 7.5MHz
Linear array probe DW-L2 128 10.0MHz
micro-convex probe DW-C2 128 6.0MHz

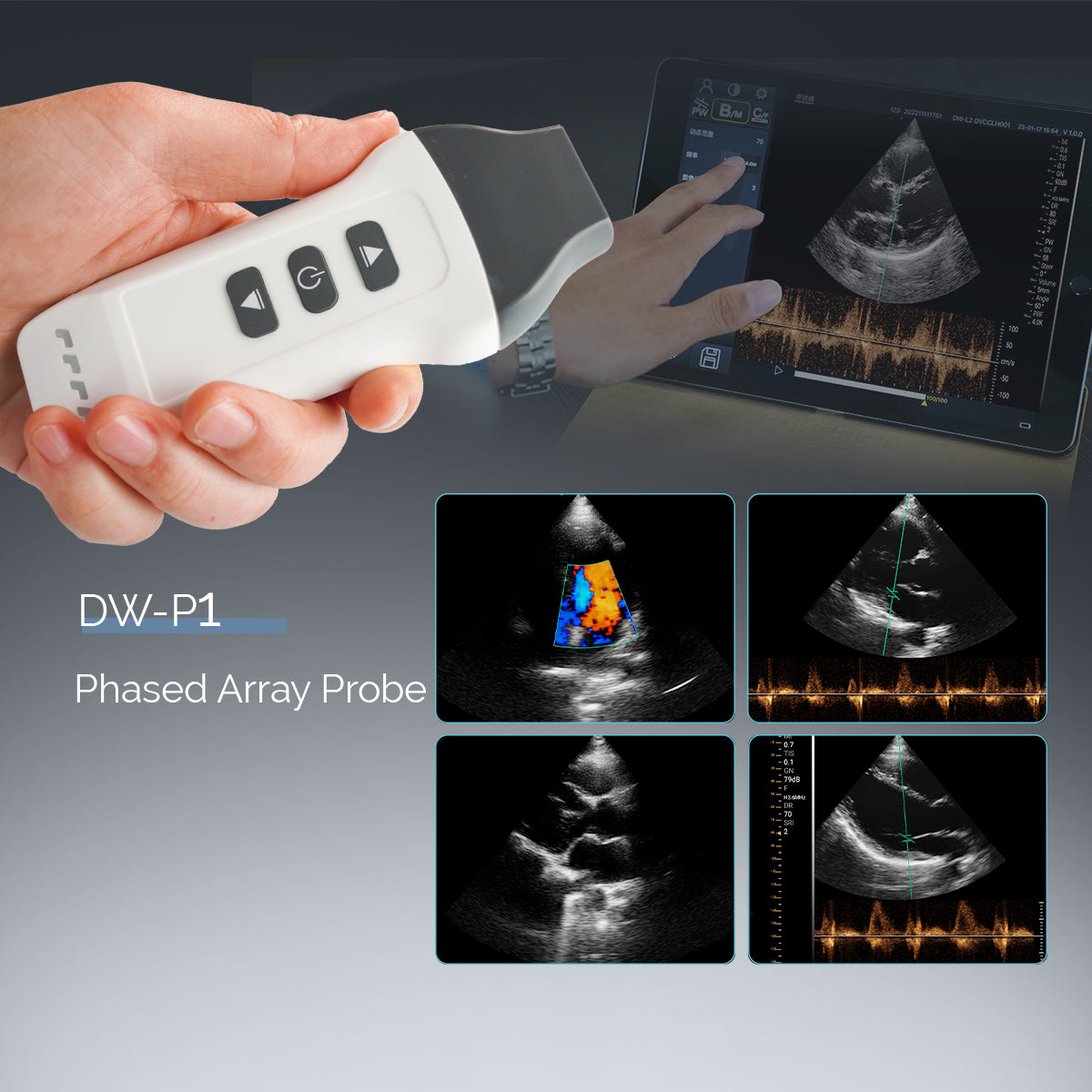

Phased Array Probe DW-P1 64
2.7MHz


Check presets:
Convex array: abdomen, gynecology, obstetrics, heart, urinary system, kidney, etc.

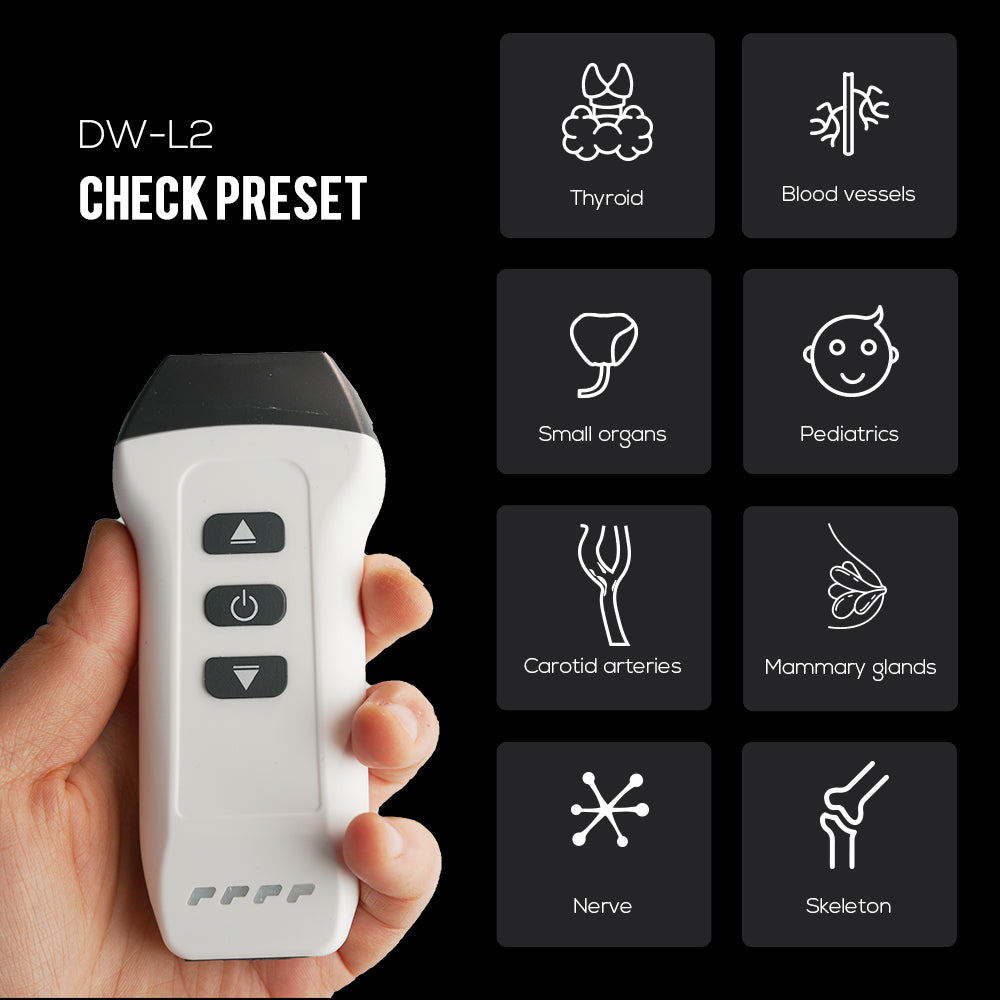

Linear array: thyroid, small organs, blood vessels, carotid arteries, breast, musculoskeletal, nerves, etc.
Micro-convex: heart, abdomen, etc.
Phased array: heart, abdomen, etc.

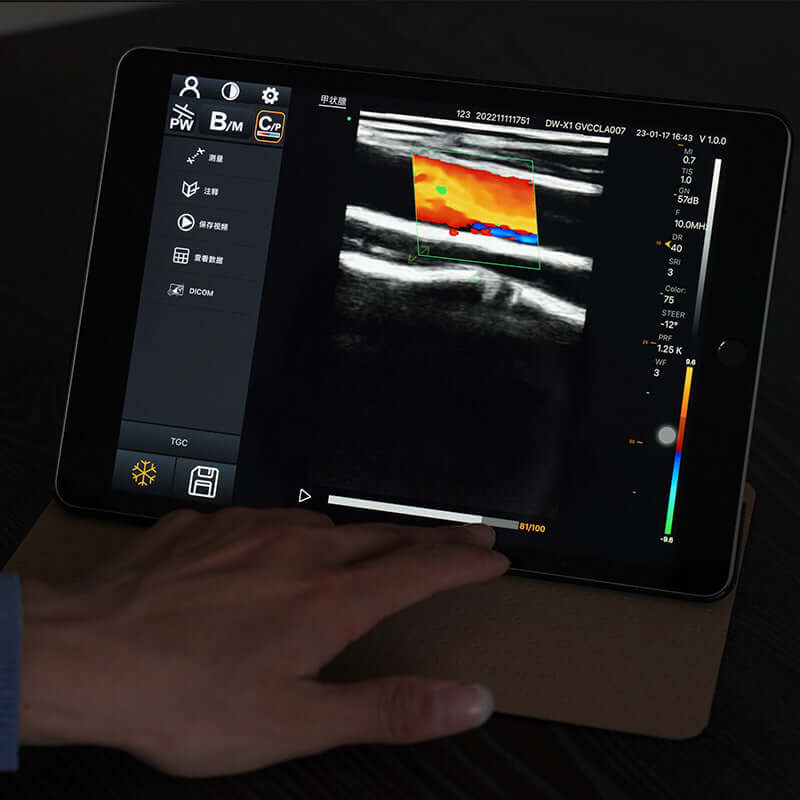

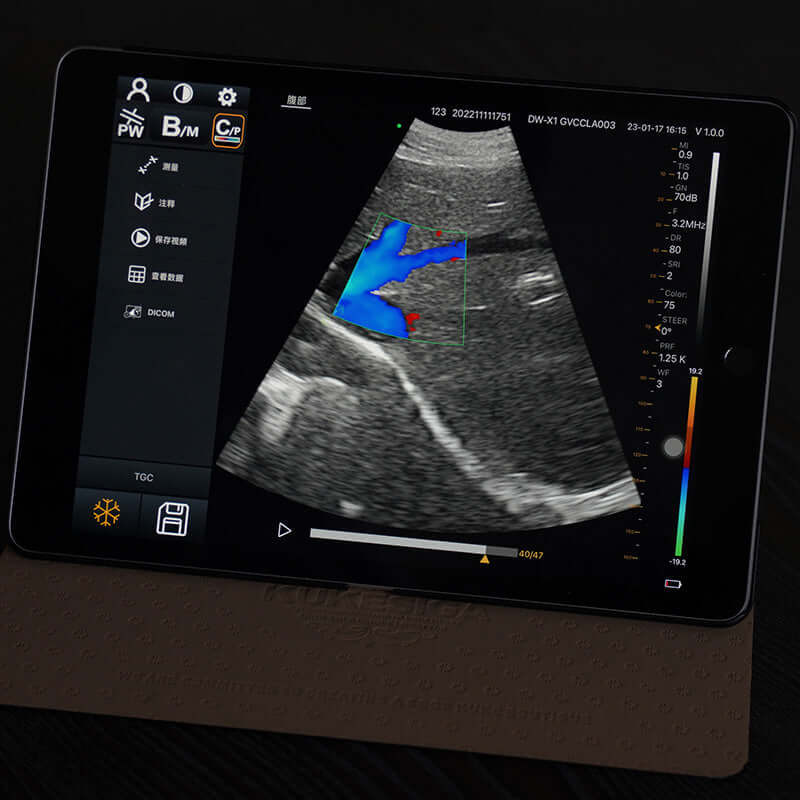

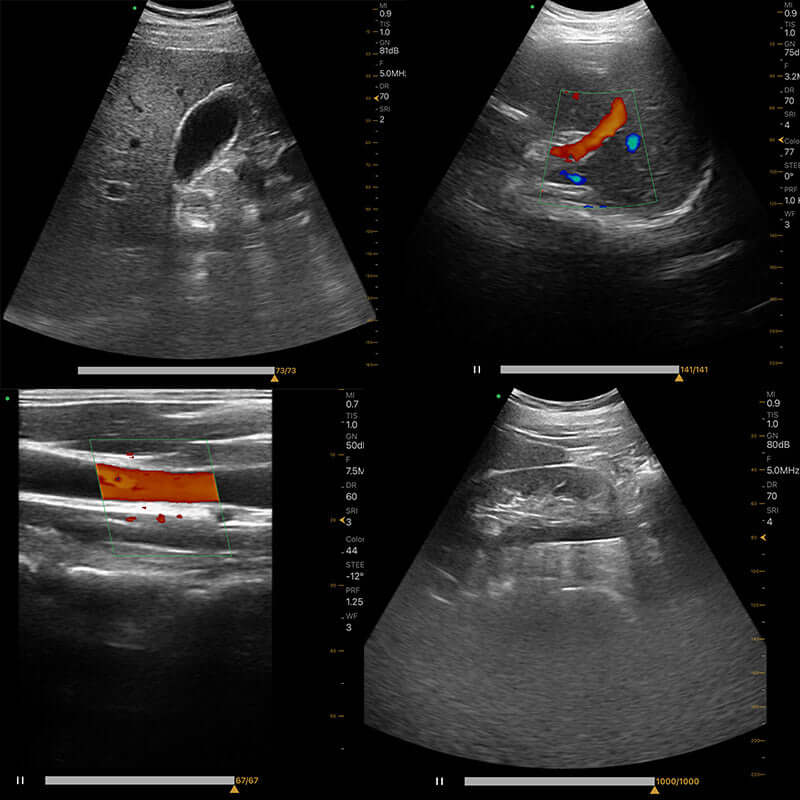

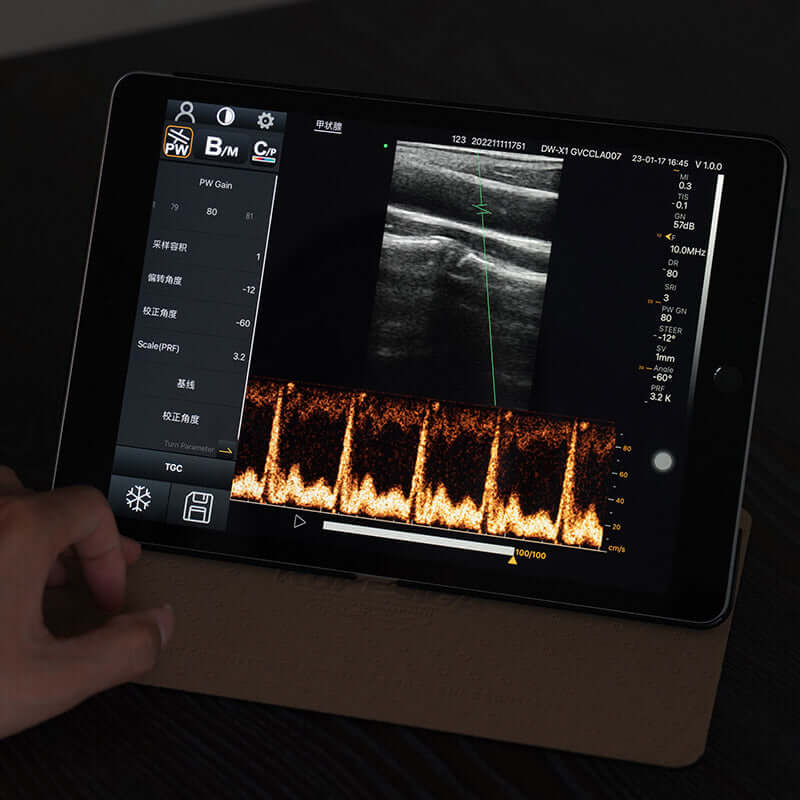

Clinical Images:

Customer's actual operation by Dawei wireless pocket ultrasound

Visiting customers practice - wireless ultrasound

 2023 CMEF on-site booth pictures, with our wifi phone ultrasound

2023CMEF on-site booth pictures

Featuring a flexible collocation system, this device allows you to display images on a variety of screen sizes, from mobile phones to tablets – both Android and Apple IOS compatible. Its Wi-Fi connection enables you to bid farewell to the tangled mess of wires, offering you a range of 15 meters without signal attenuation.

With wireless charging, you'll find charging your device a breeze. Invisible charging is carried out through wireless magnetic induction charging, which reduces wear and tear of the equipment, making it durable and long-lasting. It's simple to use, technologically advanced, and always available for charging at any time.

Designed with a convex linear dual-head micro-convex phased array probe, this diagnostic system produces superior quality images to help you accurately diagnose medical conditions in the comfort of your own home.

Invest in your health and bring peace of mind to your household with the Wireless Handheld Color Doppler Pocket Phone Ultrasound Diagnostic Instrument from DAWEI – the perfect addition to any home medical kit.

WHAT'S IN THE BOX?

  • Probe Kit *1
  • Wireless Charger 15W *1
  • Type-C charging cable *1
  • User manual *1

PARAMETER PERFORMANCE INDEX

Technical Sheets

Parameters of wireless handheld color Doppler ultrasound Probe

1

configure:

One probe and one set of wireless charger

2

hardware requirements



IOS version

Processor dominant frequency: ≥ 1.8GHz,

Memory: ≥ 2G,

Display screen: ≥ 9.7 inch,

Screen resolution: ≥ 2048x1536,

Brightness: with ambient light detection function and display brightness correction function

Operating system: iOS12.3 or above

Network protocol needs to be compatible with 802.11n protocol

Android version

Processor dominant frequency: ≥ 22GHz, processor model: ≥ Qualcomm Snapdragon 660AIE,

Memory: ≥ 4G,

Display screen: ≥ 8 inches,

Screen resolution: ≥ 1920x1200,

Brightness: with ambient light detection function and display brightness correction function

Operating system: Android version 8.1.0 or above

Network protocol needs to be compatible with 802.11n protocol

3

advantage

Easy to operate and carry, it can be used in various clinical scenes;

WiFi connection, get rid of wire bondage;

15 meters away, no signal attenuation;

Wireless charging, ready to use;

4

Scope of application

It is applicable to medical and health institutions such as hospitals, clinics, disease control centers, clinical testing centers, health care centers, first aid stations, nursing stations, ambulances, nursing homes, childcare centers, plastic and aesthetic institutions, etc. at all levels and in various types of hospitals, clinics, disease control centers, clinical testing centers, health care centers, first aid stations, nursing stations, etc. It is used for human clinical ultrasonic examination, including ultrasonic examination of abdomen, superficial organs, peripheral blood vessels, etc.

5

Performance introduction:

5.1

Scanning mode

Convex array/linear array

5.2

pattern

B、B/M、CFM、PDI、PW

5.3

Check presets

Convex array: abdomen, gynecology, obstetrics, heart, urinary system, kidney, lung

Linear array: thyroid, small organs, pediatrics, blood vessels, carotid arteries, breast, musculoskeletal, nerves

Micro convex: heart, abdomen

Phased array: heart, abdomen

5.4

Measurement method

General measurement: length, area/perimeter, trajectory, depth, angle

Obstetric measurement: head hip length, biparietal diameter, gestational sac diameter, femoral length, head circumference, abdominal circumference, fetal weight (biparietal diameter), fetal weight (femoral length)

B/M measurement: heart rate (2), duration, distance, LVID measurement

PW measurement: speed, S/D, heart rate (2), depth

5.5

Number of movie playback frames

100/200/500/1000

5.6

B mode parameters:

5.6.1

Gain GN

Range: G30 - G105;

5.6.2

Depth D

Convex array 90mm-305mm

Linear array 20mm-100mm

Slightly convex 30mm-120mm

Phased array 90mm-190mm

5.6.3

Image Enhancement (SRI)

0-4, 5

5.6.4

focus

2 focus points, 4 groups of positions in total, 1 focus point for convex array probe;

5.6.5

puncture

There are two kinds of puncture auxiliary functions: In Plane (in-plane guide line)

Out Plane

5.6.6

frequency

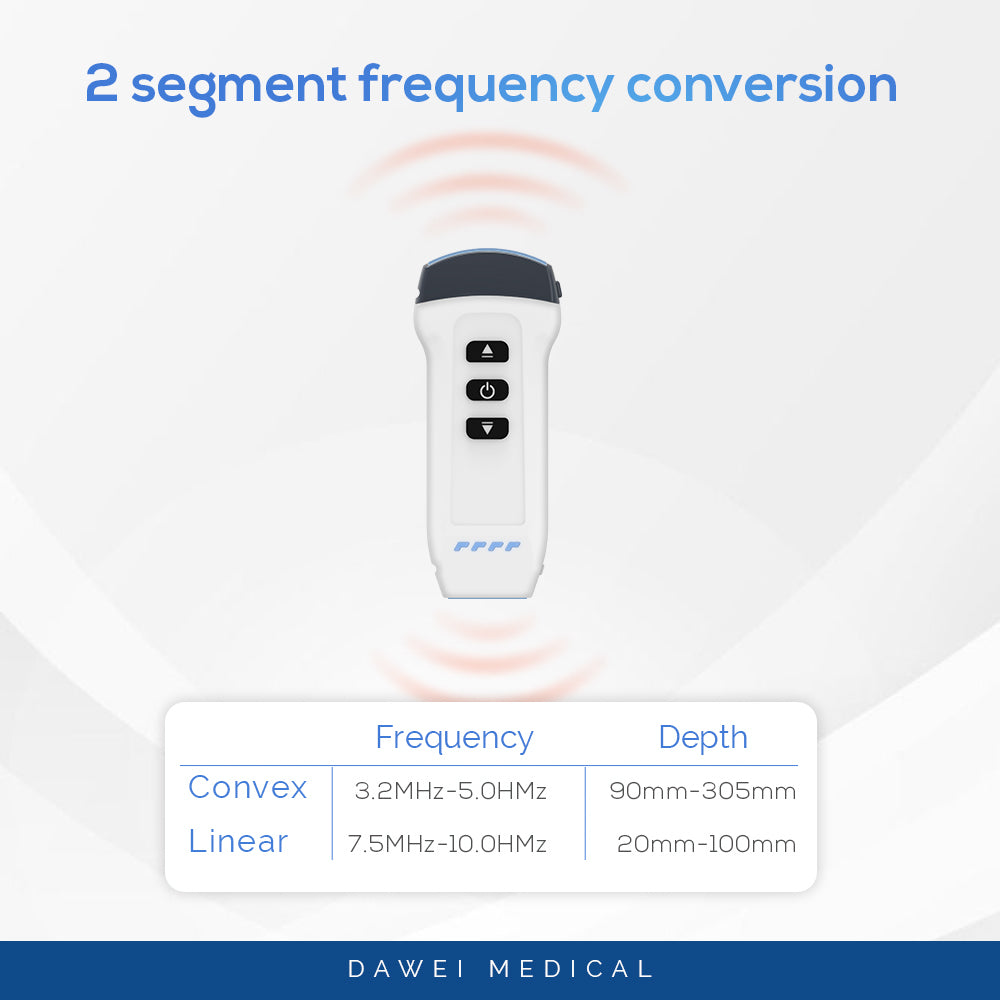

DW-X1: 2-segment frequency conversion, convex array 3.2MHz-5.0HMz, linear array 7.5MHz-10.0HMz

DW-C1:2 section frequency conversion, 3.2MHz-5.0HMz

DW-L1:2 section frequency conversion, 7.5MHz-10.0HMz

DW-L2: 2-section frequency conversion, 10.0MHz-14.0HMz

DW-C2: 2-section frequency conversion, 6.5MHz-8.0HMz

DW-P1:2 section frequency conversion, 2.2MHz-3.6HMz

5.7

CFM mode parameters:



5.7.1

Color Gain

Color gain, range 0-100;

5.7.2

Scale(PRF)

Pulse repetition frequency, 4 groups in total:

1.25K, 2.0K, 3.2K and 4.0K for linear array;

The convex matrix is 1.25K, 1.6K, 2.5K, 3.2K;

5.7.3

Wall filtering

0-15, 16 gears in total;

5.7.4

Red blue flip

Color code flipping;

5.7.5

Deflection angle (Steer)

Three groups of angles: - 12, 0,+12

5.8

PW mode parameters:



5.8.1

PW Gain

PW gain, range 0-100;

5.8.2

Sampling volume

The sampling volume is 1mm  2mm  5mm;

5.8.3

Deflection angle

Sampling line angle, 5 groups of angles in total: - 12, - 7, 0,+7,+12;

5.8.4

Correction angle

Sampling gate angle,+60 degrees, 0, - 60 degrees.

5.8.5

Scale(PRF)

Pulse repetition frequency, 4 groups in total:

The convex matrix is 1.25K, 1.6K, 2.5K, 3.2K;

1.25K, 2.0K, 3.2K and 4.0K for linear array;

Slightly convex: 1.25K, 2.0K, 3.2K, 4.0K;

The phased array is 2.0K, 2.5K, 3.2K, 4.0K;

5.8.6

Correction angle

Sampling gate angle, - 85 ° to 85 °, step 5;

6

other

6.1

Measurement aids

Measuring magnifier

6.2

DICOM

Transferable

6.3

notes

Text annotation

6.4

Save Video

MP4, up to 1000 frames (≈ 77 seconds)

6.5

Save Picture

JPG 、 DICOM

6.6

Usage time

≈ 2 hours

6.7

Battery capacity

1350mAh

6.8

size

DW-X1:123mm*52.6mm*22mm

DW-C1:116mm*71mm*22mm

DW-L1:115mm*65mm*22mm

DW-L2:114mm*52mm*21mm

DW-C2:132mm*52mm*23mm

DW-P1:127mm*52mm*23mm

6.9

weight

95-125g

PRODUCT FAQs & TIPS

FAQ:

  1. Is it stationary or portative?
Portative.
  1. Can I use it in car?
Yes, requires an IOS device or an Android device to use with it.
  1. How does it charge?
Wireless charger (15W) included in the package.
  1. What does kit include?
Wireless ultrasound probe 1 pc
Wireless charger 15W 1 pc
type-C charging cable 1 pc
  1. Does it work with telephone or any other devices?
Support for phones and tablets with IOS or Android devices.
  1. Do we need to buy something extra for correct work?
Requires ultrasound gel for use with, which is easy to buy.
