Hospital Clinic Health Care Center Portable 4D OB&GYN Color Doppler Ultrasound Machine K6 | DAWEI

K6 Technical Parameters

1

A summary of the portable 4D color doppler ultrasound main specifications

1.1

Portable all digital color Doppler ultrasonic host

1.2

Ultrasonic host operating system: Windows 8 operating system

1.3

Spectrum pulse Doppler

1.4

Direction energy Doppler

1.5

Real time three synchronization

1.6

Space composite imaging: the requirement is 3 level, visual adjustable.

1.7

Organized harmonic imaging technology

1.8

4B imaging mode

1.9

One key intelligent optimization

1.10

System languages: Chinese/English/ Spanish/ French/ Russian

1.11

Monitor: 15 inches, high definition LED

1.12

Display 0-30 degree angle adjustable

1.13

Physical clipboard: save the image on the left side of the screen, which

can be directly saved or deleted.

1.14

The system has the function of on-the-spot upgrade

1.15

Presupposition: for different inspection of the viscera, preset the inspection

conditions for the best image, reduce the adjustment of the operation,

and the commonly used external adjustment and combination regulation.

1.16

Support real-time 4D imaging function

1.17

The probe interface is 2

2

Probes

2.1

Convex array probe: fundamental frequency 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz,

2.2

Linear array probe: fundamental frequency: 6.0MHz/7.5MHz/8.5MHz/10.0MHz/H10.0MHz,

2.3

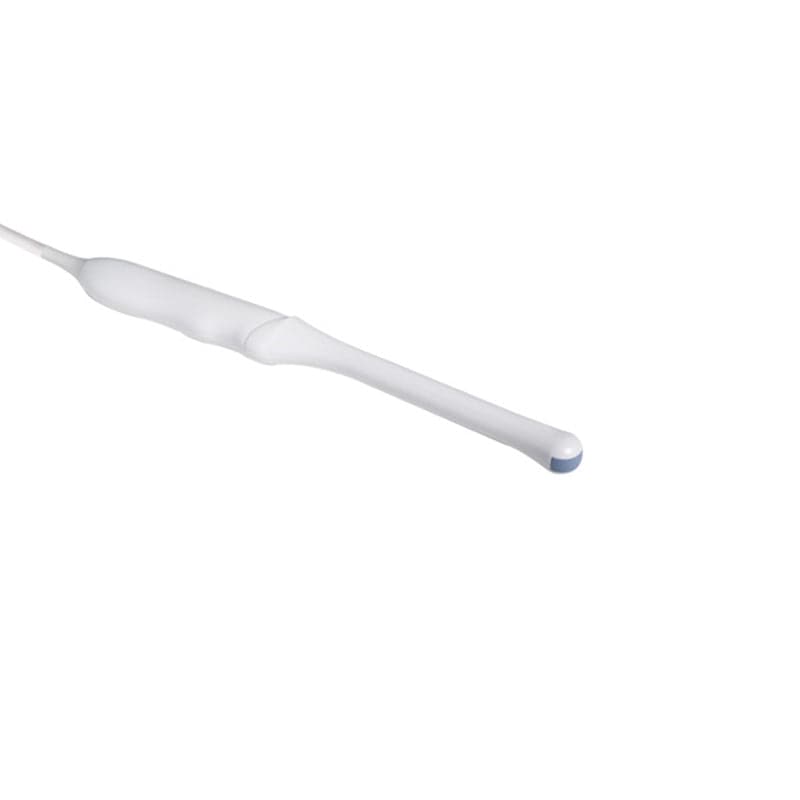

Trans-vaginal probe: fundamental frequency: 4.5MHz/6.0MHz/7.0MHz

/9.0MHz/H8.0MHz,

2.4

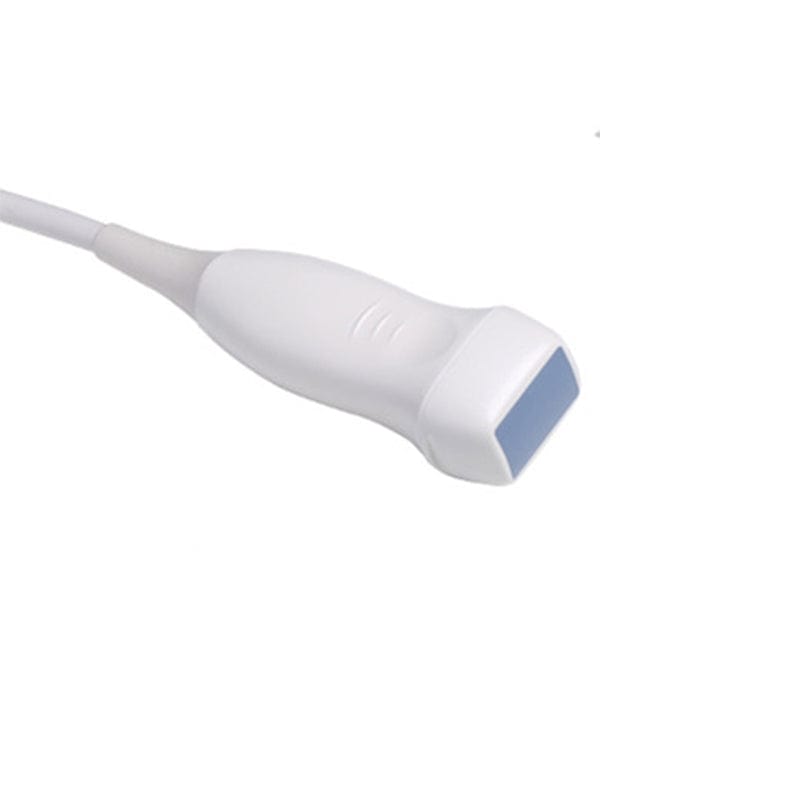

Phased array probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H3.0MHz/H4.0MHz,

2.5

Micro convex probe: 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz

2.6

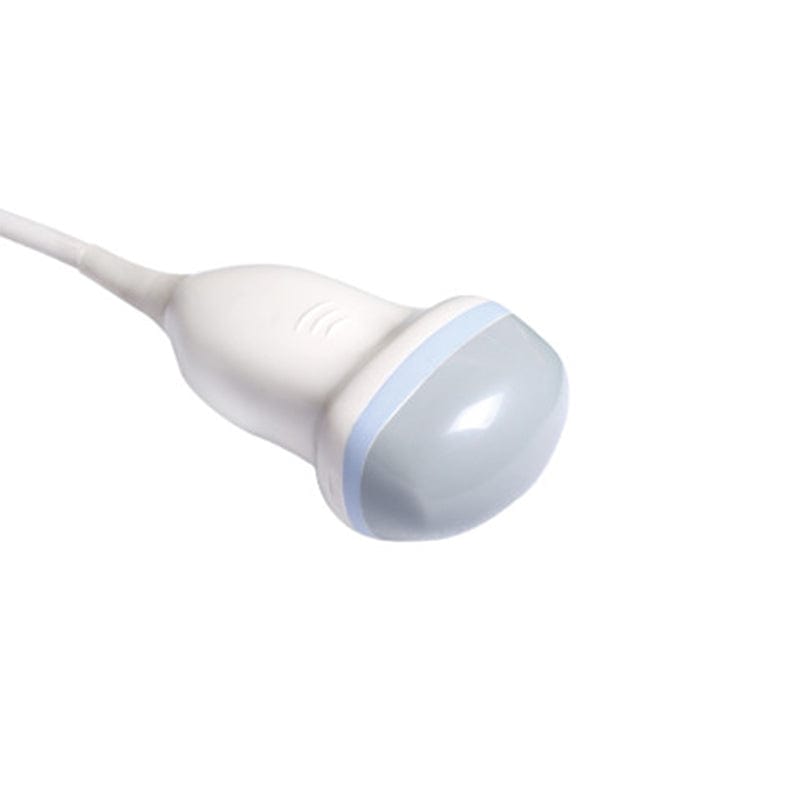

4D Volume probe: 2.0MHz/3.0MHz/4.5MHz/6.0MHz/H5.0MHz,

2.7

The above probe has harmonic frequency

2.8

It can be selected according to customer needs: convex array probe,

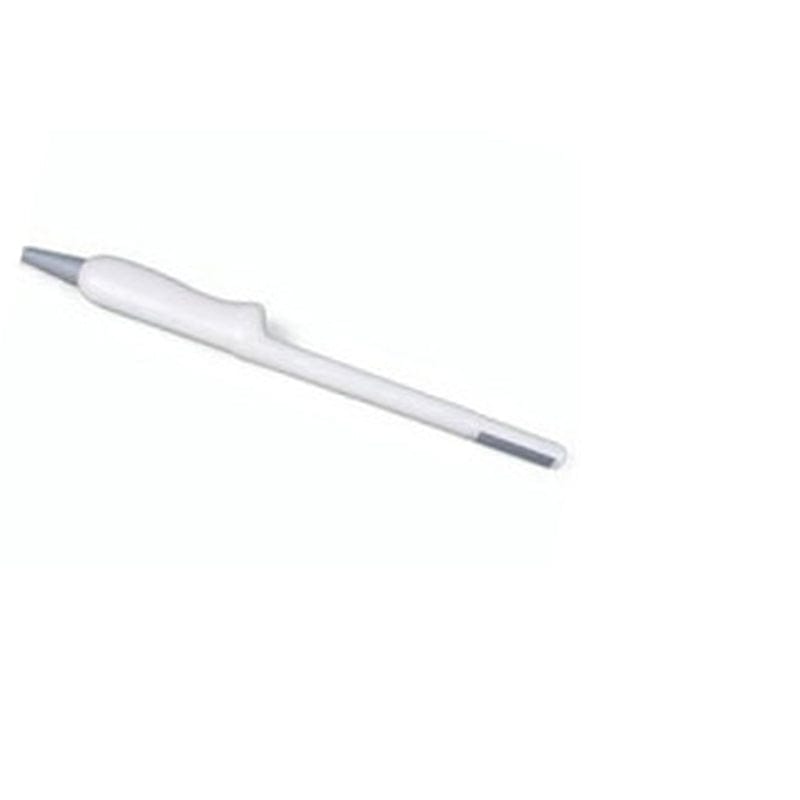

linear array probe, rectal probe, micro convex probe, phased array probe,

4D volume probe.

2.9

Under each probe, there is a selection of specialist and viscera mode and

rapid entry detection.

3

Two-dimensional imaging mode

3.1

Gain: 0-100, step 1 visible adjustable

3.2

TGC: 8 segment adjustable

3.3

Image optimization: visible and adjustable over 7 levels

3.4

Dynamic range: 20-280dB 20 level visual adjustable (maximum value and

adjacent step image proofs).

3.5

False color: 12, visible and adjustable

3.6

Smooth treatment: 8, visible and adjustable

3.7

Edge enhancement: 8, visible and adjustable

3.8

Sound power: 5% to 100%, step 5%, visible and adjustable

3.9

Display depth: greater than 317mm, less than 20mm, max depth of probe

371mm

3.10

Maximum focus number: 6 focal points, which can be moved throughout the

whole process.

3.11

Scan line density 256 visible tunable

3.12

Gray scale: 0-7 level visible visible and adjustable

3.13

Filtering, 5 kinds

3.14

Scanning range, 50%-100%

3.15

Frame correlation, 0-4 level, visible and adjustable

3.16

The screen has 14 forms of real time display of voice power, probe

frequency, dynamic range, pseudo color, grayscale and so on.

4

Color imaging mode

4.1

Color frequency: 8 frequency conversion, visible adjustable

4.2

Color deflection: equipped with

4.3

Color frame correlation 12 levels, visible and adjustable

4.4

Color map: 7, visible and adjustable

4.5

Color reversal: adjustable

4.6

B/C split screen synchronous display function: equipped with

4.7

Color baseline: 7, visible and adjustable

4.8

Color line density: adjustable

5

Spectrum Doppler mode

5.1

Sampling volume angle correction: -80 degree to 80 degree adjustable

5.2

Sampling volume: 0.5mm-20mm visibility adjustable

5.3

Frequency: ≥5, visible and adjustable

5.4

Baseline: 8 adjustable

5.5

Smooth: 8 files can be adjusted

5.6

Display layout: 4 visible tunable

5.7

False color: 7 kinds of adjustable

5.8

Speed scale: 3-2288cm/s

5.9

Spectrum envelope function: real time automatic spectrum envelope,

manual spectrum envelope, and so on. System automatic analysis and

display: PSV, EDV, RI, PI, S/D, ACC, HR and other kinds of data

6

Measurement and analysis function:

6.1

General measurement distance, area, angle, time, slope, heart rate,

velocity, acceleration, neck hyaline layer, spectrum tracing, resistance index

/ pulsatility index, etc.

6.2

Obstetric measurement: weight measurement formula 8 options

6.3

The color and line type of the measuring line can be adjusted at will (including

activating the color and completing the color).

6.4

The measurement results show that the location and font size can be adjusted

according to needs.

6.5

Professional software package: abdomen, volume, ratio, obstetrics and

Gynecology, small organs, carotid, Urology, orthopedics, peripheral blood

vessels, heart.

7

Graphic and text management system

7.1

Host built in ≥128G solid state hard disk to start fast and stable

7.2

Movie playback: 1200 frames

7.3

Internal patient file information management system: can record patient number,

name, check number, check date and so on, and can be searched and managed

by numbering, checking number, name and so on

7.4

The type of report is 16

7.5

One key fast report graphic and text management

8

Interface

8.1

USB interface: 6

8.2

POWER interface: 1

8.3

LAN interface: 2

8.4

HDMI interface:2

9

Technology, after-sales service and other requirements

9.1

After acceptance, the warranty is free for two years

9.2

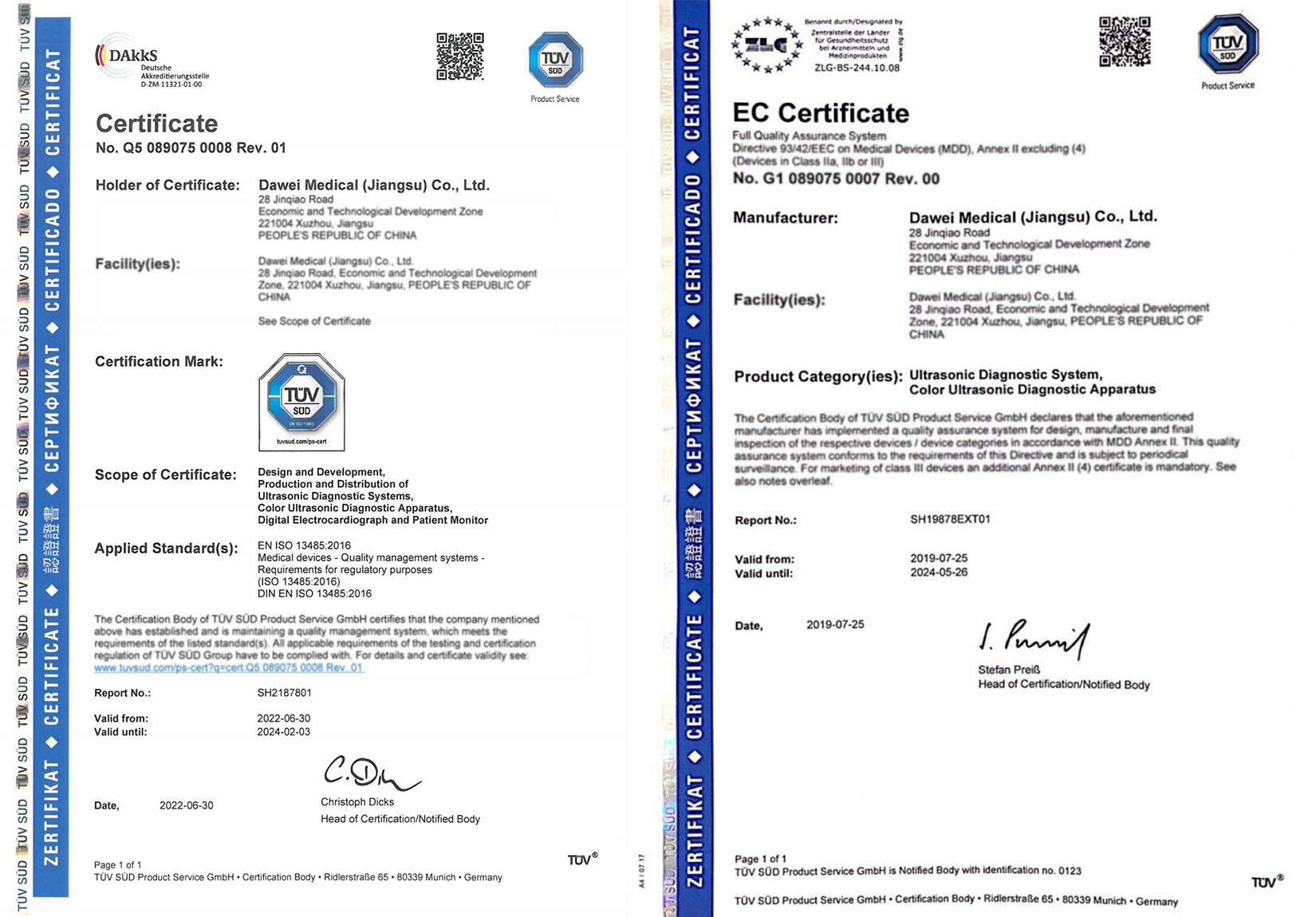

Manufacturer has ISO13485 certification and EU CE certification.
